7.5-100V 宽输入电压,100mA 恒定导通时间同步降压稳压器 8-WSON -40 to 125
降压 开关稳压器 IC 正 可调式 1.225V 1 输出 100mA 8-WDFN 裸露焊盘
得捷:
IC REG BUCK ADJ 100MA 8LLP
立创商城:
LM5019SD/NOPB
德州仪器TI:
7.5-100V Wide Vin, 100mA Constant On-Time Synchronous Buck Regulator
艾睿:
Adjust the voltage level of your devices with this step down LM5019SD/NOPB DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 0.1 A. This will operate at a minimum voltage of 7.5 V and a maximum voltage of 100 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 1.25 to 90 V, this is power management at its best. It has a switching frequency of 1000Max kHz. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This converter has an operating temperature range of -40 °C to 125 °C.
安富利:
Conv DC-DC Single Step Down 9V to 100V 8-Pin LLP EP T/R
Verical:
Conv DC-DC 7.5V to 100V Synchronous Step Down Single-Out 1.25V to 90V 0.1A 8-Pin WSON EP T/R
DeviceMart:
IC REG BUCK SYNC ADJ .1A 8LLP
输出接口数 1
输出电压 1.25V ~ 90V
输出电流 100 mA
静态电流 1.75 mA
调节输出数 1
开关频率 1000 kHz
拓扑结构 Buck
输入电压Max 100 V
输入电压Min 7.5 V
输出电压Max 90 V
输出电压Min 1.225 V
输出电流Max 0.1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 9V ~ 100V
安装方式 Surface Mount
引脚数 8

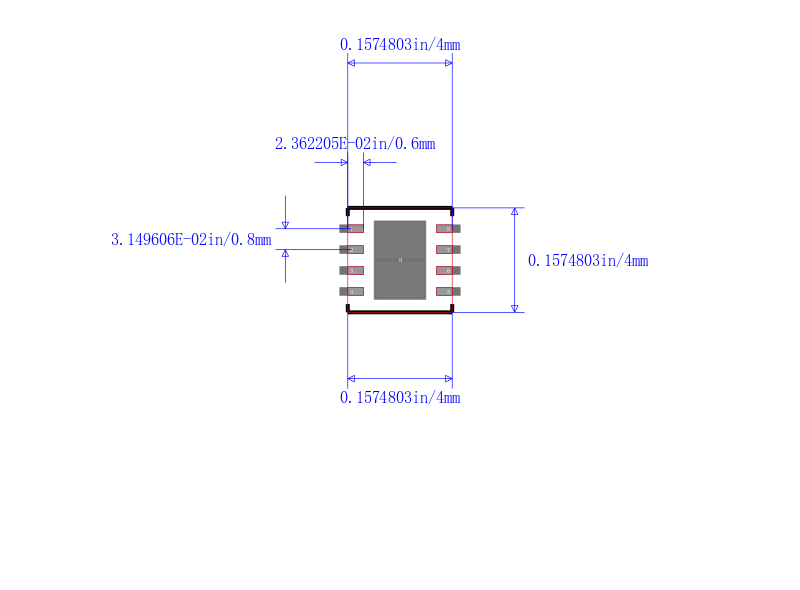

封装 WDFN-8
封装 WDFN-8
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM5019SD/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM5019SDX/NOPB 德州仪器 | 类似代替 | LM5019SD/NOPB和LM5019SDX/NOPB的区别 |
