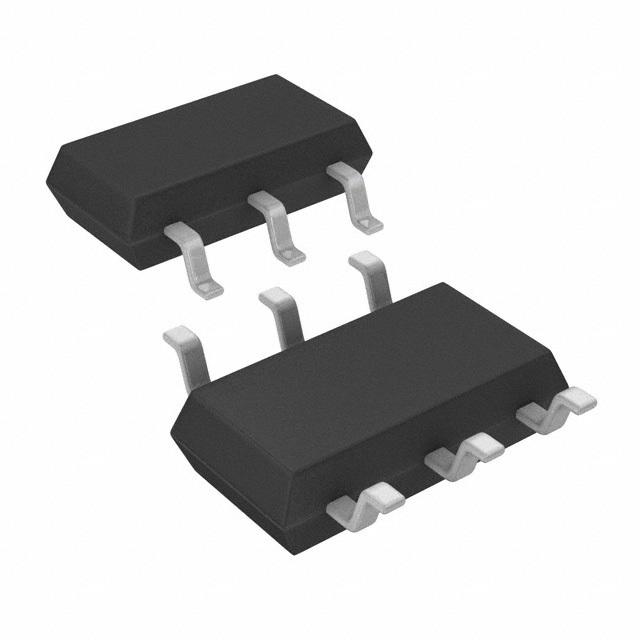

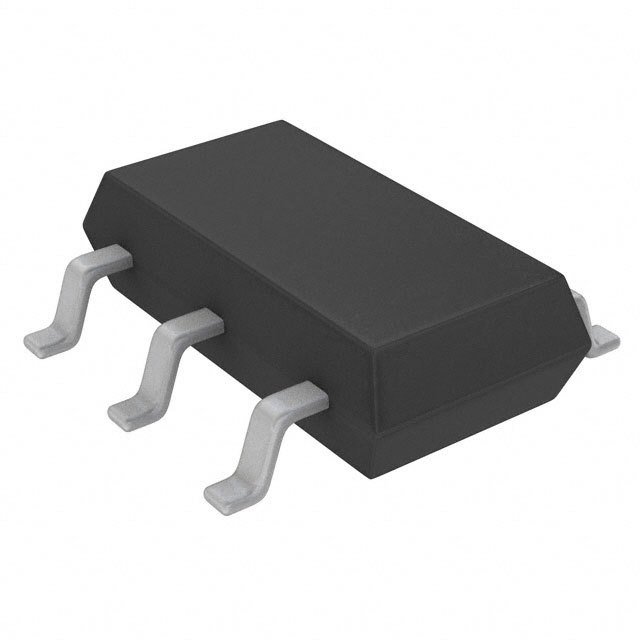

LINEAR TECHNOLOGY LT6656BCS6-3#TRMPBF 电压基准, 精密, 系列 - 固定, LT6656系列, 3V, TSOT-23-6
Even in the event of large power supply variations, this voltage reference power management device from can produce and maintain a precise DC voltage. With an output that has a voltage of 3 V, this is power management at its best. It has an initial accuracy of 0.1%. Use this part at voltages lower than 20 V. This voltage reference circuit supports series topology. To produce a constant current at your output, supply your circuit with a load regulation of 150ppm/mA and line regulation of 25ppm/V. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It runs with a maximum temperature coefficient of 20ppm/°C. This voltage reference circuit has a minimum operating temperature of 0 °C and a maximum of 70 °C.
容差 ±0.1 %
输入电压DC 3.50V ~ 18.0V
输出电压 3 V
输出电流 5 mA
供电电流 1.5 µA
针脚数 6
输入电压Max 20 V
输入电压Min 3.5 V
输出电压Min 3 V
工作温度Max 70 ℃
工作温度Min 0 ℃
输入电压 3.5V ~ 18V
安装方式 Surface Mount
引脚数 6
封装 TSOT-23-6
封装 TSOT-23-6
工作温度 0℃ ~ 70℃ TA
温度系数 ±20 ppm/℃
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT6656BCS6-3#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT6656BCS6-3#TRPBF 凌力尔特 | 完全替代 | LT6656BCS6-3#TRMPBF和LT6656BCS6-3#TRPBF的区别 |
