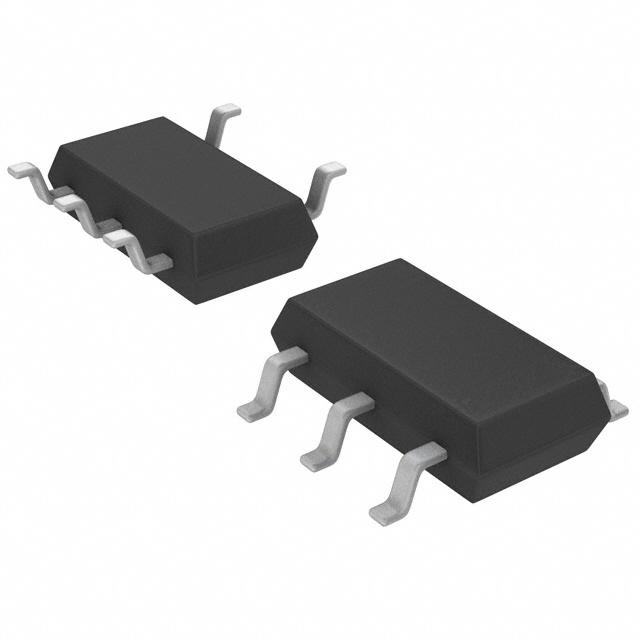

Conv DC-DC 2.45V to 16V Step Up Single-Out 1.255V to 34V 2.5A Automotive 5Pin TSOT-23 T/R
Adjust the voltage level of your devices with this step up DC to DC converter from . This converter"s single output can produce a current up to 2.5 A. Using the part will provide the power your application needs by requiring a voltage only of 2.45 V and not exceeding a voltage of 16 V. With an adjustable output that has a voltage of 1.255 to 34 V, this is power management at its best. A line regulation of 0.05%/V is necessary for providing a constant voltage level at your output. You can operate this at a switching frequency of 2600 kHz. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This converter has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 15.0 V
输出接口数 1
输出电压 1.26V ~ 34V
输出电流 1 A
开关频率 2.2 MHz
输入电压Max 16 V
输入电压Min 2.45 V
输出电压Min 2.45 V
输出电流Max 2.5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 2.45V ~ 16V
安装方式 Surface Mount
引脚数 5
封装 TSOT-23-5
高度 0.9 mm
封装 TSOT-23-5
工作温度 0℃ ~ 70℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1930AES5#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
