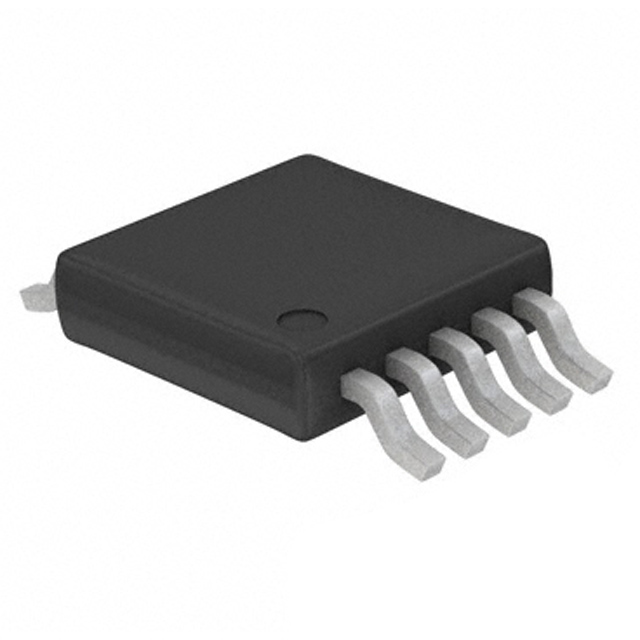

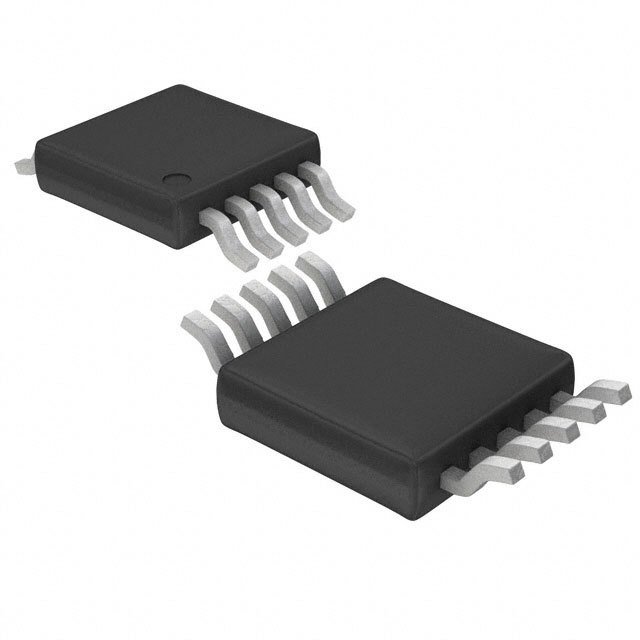

LTC2918IMS-A1#PBF

LINEAR TECHNOLOGY  LTC2918IMS-A1#PBF  电压监控器, 手动复位, 低电平有效复位, 1.5V-5.5V输入, MSOP-10

The is a low-voltage single-supply Voltage Supervisor with manual reset input, 27 selectable thresholds and an adjustable watchdog timer. The parts operate from 1.5 to 5.5V and consume a quiescent current of only 30µA. Two three state inputs select one of nine internally programmed thresholds without the need for external resistors. The tolerance for the LTC2918 is fixed at -5%. Threshold accuracy is guaranteed at ±1.5% over the entire operating temperature range. Glitch filtering ensures reliable reset operation without false triggering. The reset timeout and the watchdog timeout may be set with no external components or adjusted using an external capacitor. A windowed watchdog feature is available for high-reliability applications B1 versions. A separate manual reset input on the LTC2918-A allows a simple push button interface.

.

Power supply glitch immunity

.

Guaranteed operation to 125°C

.

Guaranteed RST\ for VCC>= 0.8V

.

6.2V Shunt regulator for high voltage operation

.

30µA Typical low quiescent current
