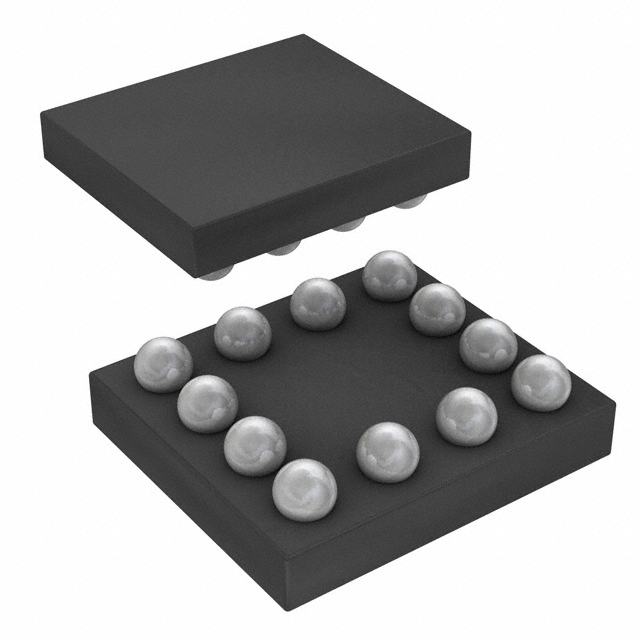

TEXAS INSTRUMENTS LM5113TME/NOPB 半桥驱动器, 4.5V-5.5V电源, 5A输出, 26.5ns延迟, DSBGA-12
半桥 栅极驱动器 IC 非反相 12-DSBGA
得捷:
IC GATE DRVR HALF-BRIDGE 12DSBGA
立创商城:
LM5113TME/NOPB
e络盟:
TEXAS INSTRUMENTS LM5113TME/NOPB 半桥驱动器, 4.5V-5.5V电源, 5A输出, 26.5ns延迟, DSBGA-12
艾睿:
Say goodbye to transistors not being provided proper biasing current by using this LM5113TME/NOPB power driver by Texas Instruments. Its typical operating supply voltage is 5 V. This device has a maximum propagation delay time of 30typ ns. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This gate driver has a minimum operating temperature of -40 °C and a maximum of 125 °C. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
安富利:
MOSFET DRVR 5A 2-OUT Hi/Lo Side Non-Inv 12-Pin DS-BGA T/R
Verical:
Driver 5A 2-OUT High and Low Side Half Brdg Non-Inv 12-Pin DSBGA T/R
Newark:
# TEXAS INSTRUMENTS LM5113TME/NOPB HALF BRIDGE DRIVER, 5A, 100V, DSBGA-12
电源电压DC 4.50V min
上升/下降时间 7ns, 1.5ns
输出接口数 2
针脚数 12
上升时间 4 ns
下降时间 4 ns
下降时间Max 4 ns
上升时间Max 4 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 12
封装 WFBGA-12
封装 WFBGA-12
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM5113TME/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM5113TMX/NOPB 德州仪器 | 完全替代 | LM5113TME/NOPB和LM5113TMX/NOPB的区别 |
LM5113SDX/NOPB 德州仪器 | 类似代替 | LM5113TME/NOPB和LM5113SDX/NOPB的区别 |
LM5113SD/NOPB 德州仪器 | 功能相似 | LM5113TME/NOPB和LM5113SD/NOPB的区别 |
