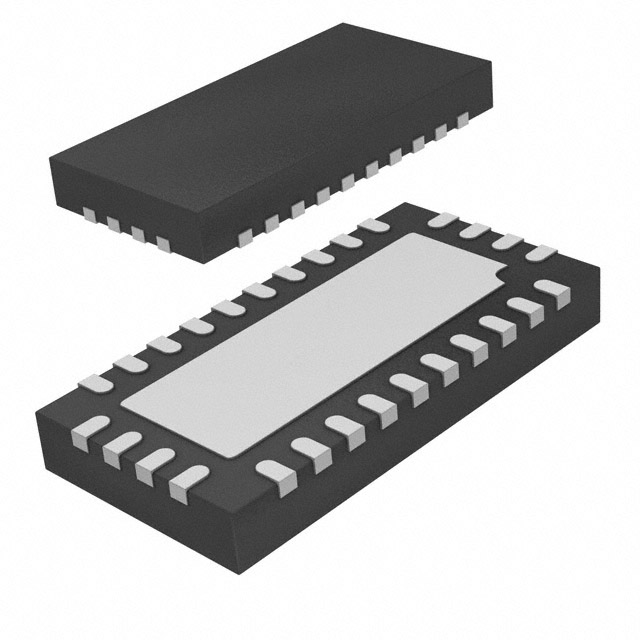

LINEAR TECHNOLOGY LT8613EUDE#PBF 直流-直流开关降压, 逐步递降稳压器, 可调, 3.4V-42V输入, 6A输出, 2MHz, QFN-28
The is a compact high-efficiency high-speed synchronous monolithic step-down Switching Regulator consumes only 3µA of quiescent current. Top and bottom power switches are included with all necessary circuitry to minimize the need for external components. The built-in current sense amplifier with monitor and control pins allows accurate input or output current regulation and limiting. Low ripple Burst Mode® operation enables high efficiency down to very low output current while keeping the output ripple below 10mVP-P. A SYNC pin allows synchronization to an external clock. Internal compensation with peak current mode topology allows the use of small inductors and results in fast transient response and good loop stability. The EN/UV pin has an accurate 1V threshold and can be used to program VIN undervoltage lockout or to shut down the LT8613 reducing the input supply current to 1µA. A capacitor on the TR/SS pin programs the output voltage ramp rate during startup.
输出接口数 1
输出电流 6 A
针脚数 28
开关频率 2 MHz
输入电压Max 42 V
输入电压Min 3.4 V
输出电压Max 41.58 V
输出电压Min 0.97 V
输出电流Max 6 a
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 28
封装 QFN-28
封装 QFN-28
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Each
制造应用 Power Management, Industrial, 电源管理, 工业, 车用, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT8613EUDE#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT8613EUDE#TRPBF 凌力尔特 | 类似代替 | LT8613EUDE#PBF和LT8613EUDE#TRPBF的区别 |
