高电压( 80V )降压开关稳压器 High Voltage 80V Step Down Switching Regulator
The LM5007 Step Down Switching Regulator features all of the functions needed to implement low cost, efficient, Buck bias regulators. This high voltage regulator contains an 80-V, 0.7-A N-Channel Buck Switch. The device is easy to apply and is provided in the VSSOP-8 and the thermally enhanced WSON-8 packages. The regulator is based on a hysteretic control scheme using an on time inversely proportional to VIN. This feature allows the operating frequency to remain relatively constant with load and input voltage variations. The hysteretic control requires no control loop compensation, while providing very fast load transient response. An intelligent current limit is implemented in the LM5007 with forced off time that is inversely proportional to VOUT. This current limiting scheme reduces load current foldback. Additional protection features include: Thermal Shutdown, VCC undervoltage lockout, gate drive undervoltage lockout, and Max Duty Cycle limiter.
输出接口数 1
输出电压 2.5V ~ 73V
输出电流 500 mA
静态电流 500 µA
调节输出数 1
开关频率 50kHz, 800kHz
拓扑结构 Buck
输入电压Max 75 V
输入电压Min 9 V
输出电压Max 73 V
输出电压Min 2.5 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 75 V
安装方式 Surface Mount
引脚数 8

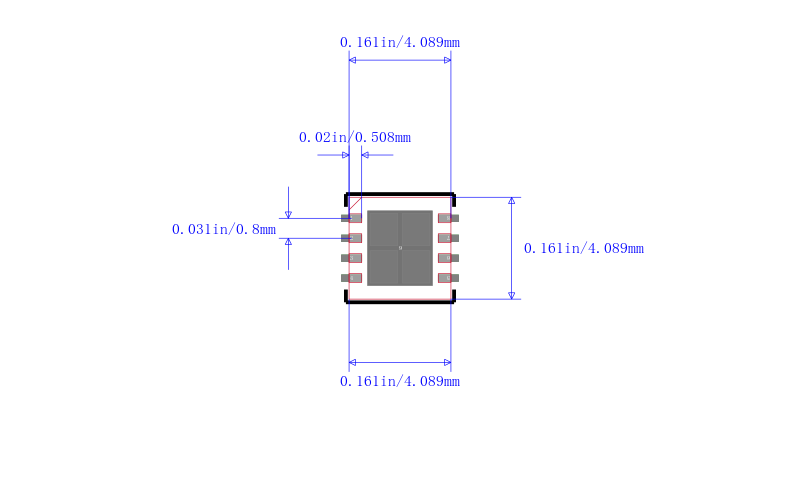

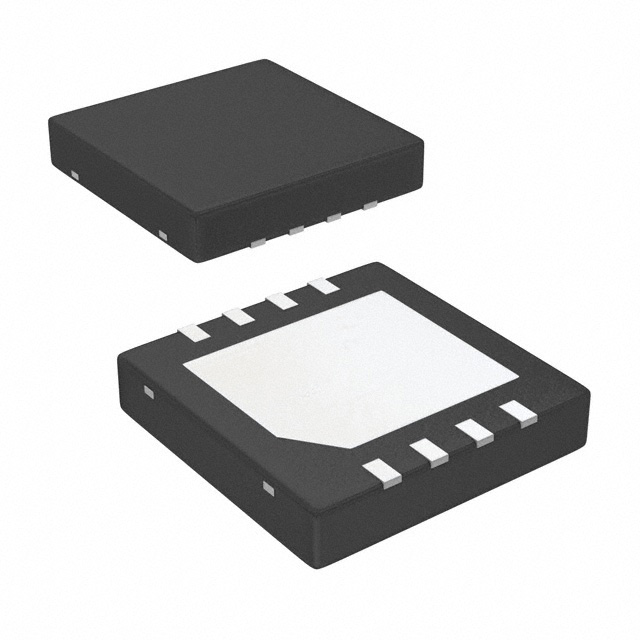

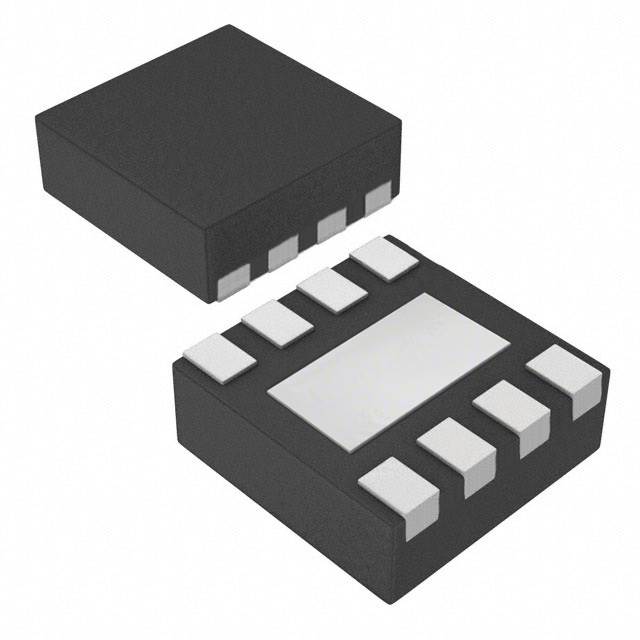

封装 WSON-8
封装 WSON-8
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM5007SDX/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM5007SD/NOPB 德州仪器 | 类似代替 | LM5007SDX/NOPB和LM5007SD/NOPB的区别 |
LM5007SD 德州仪器 | 类似代替 | LM5007SDX/NOPB和LM5007SD的区别 |
LM5007SDX 德州仪器 | 功能相似 | LM5007SDX/NOPB和LM5007SDX的区别 |
