1.1A Step-Up DC-DC Converter with Integrated Soft-Startt
Adjust the voltage level of your devices with this step up DC to DC converter from . This converter"s single output can produce a current up to 2.5 A. It only needs a voltage of at least 2.2 V while not exceeding 16 V to effectively power your circuit. With an adjustable output that has a voltage of 40Max V, this is power management at its best. At a line regulation of 0.05%/V your circuit is capable of maintaining a constant voltage level at your output. It has a switching frequency of 2700 kHz. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This converter has an operating temperature range of -40 °C to 85 °C.
输出接口数 1
输出电压 1.255V ~ 40V
输出电流 1.1 A
开关频率 2.1 MHz
输入电压Max 16 V
输入电压Min 2.4 V
输出电压Max 40 V
输出电压Min 1.255 V
输出电流Max 2.5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 2.4V ~ 16V
安装方式 Surface Mount
引脚数 8

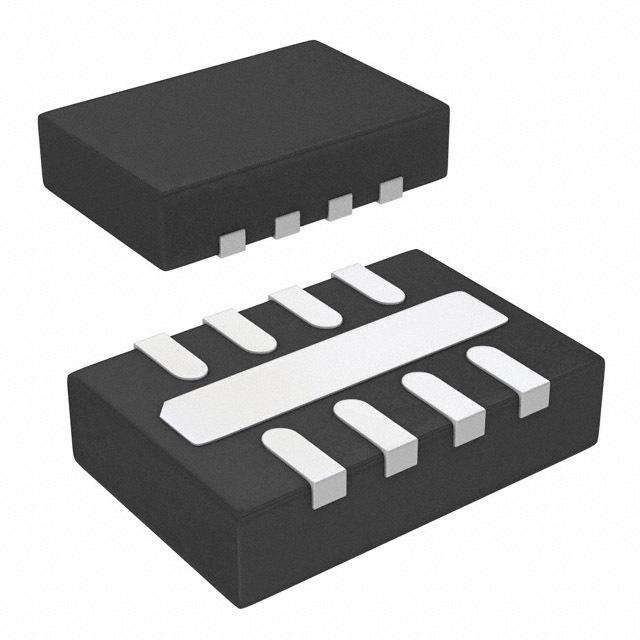

封装 WFDFN-8
高度 0.75 mm
封装 WFDFN-8
工作温度 0℃ ~ 85℃ TJ
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT3467AEDDB#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT3467AEDDB#TRPBF 凌力尔特 | 功能相似 | LT3467AEDDB#TRMPBF和LT3467AEDDB#TRPBF的区别 |
LT3467AIDDB 凌力尔特 | 功能相似 | LT3467AEDDB#TRMPBF和LT3467AIDDB的区别 |
