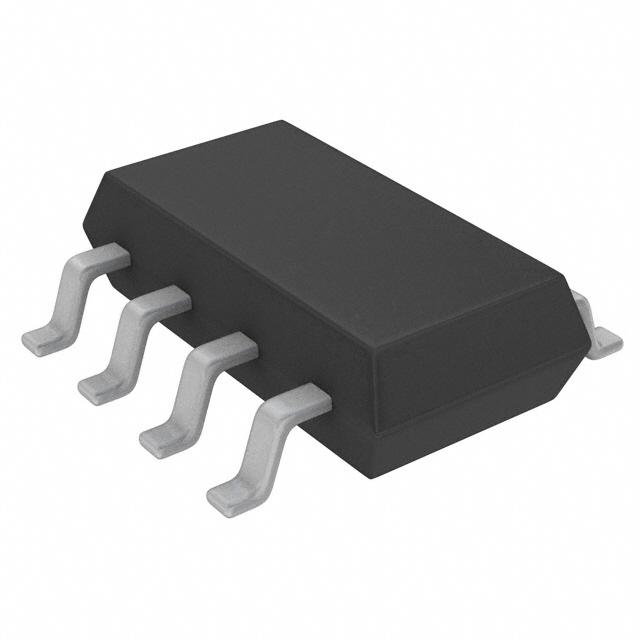

LT3007HTS8#TRMPBF

LINEAR TECHNOLOGY  LT3007HTS8#TRMPBF  电压稳压器, LDO, 可调, 2V至45V输入, 300mV压差, 600mV至44.5V/20mA输出, TSOT-23-8

The is a micro-power fault tolerant low-dropout voltage LDO Linear Regulator has supply 20mA output current with a dropout voltage of 300mV. No-load quiescent current is 3µA. Ground pin current remains at less than 5% of output current as load increases. In shutdown, quiescent current is less than 1µA. The LT3007 regulator optimizes stability and transient response with low ESR ceramic capacitors, requiring a minimum of only 2.2µF. The regulator does not require the addition of ESR as is common with other regulators. The internal protection circuitry includes current limiting, thermal limiting, reverse-battery protection and reverse-current protection. It is ideal for applications that require moderate output drive capability coupled with ultralow standby power consumption. The device is available in fixed output voltages of 1.2/1.5/1.8/2.5/3.3/5V and an adjustable version with an output voltage range of 0.6 to 44.5V.

.

Output stays at or below regulation voltage during adjacent pin short or if pin Is left floating

.

2.2µF Stable with low ESR, ceramic output capacitors
