八通道低侧驱动器，电阻和电感负载，串行/并行输入控制，输出保护及诊断 Octal Low-side Driver For Resistive and Inductive Loads With Serial / Parallel Input Control, Output Protection and Diagnostic
Dealing with high voltages and currents? Protect your circuit with the low side power switch, developed by STMicroelectronics. This charge controller has 8 outputs. This device has a maximum propagation delay time of 100 ns. This device has a supply current of 5Max mA and a minimum output current of 1Max A. This component will be shipped in tape and reel packaging for effective mounting and safe delivery.
电源电压DC 5.50V max
输出接口数 8
输出电流 1.75 A
供电电流 5 mA
通道数 8
针脚数 20
漏源极电阻 1.50 Ω
输入电压Max 7 V
输出电流Max 1 A
输出电流Min 1 A
输入数 8
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
输入电压 7 V
安装方式 Surface Mount
引脚数 20

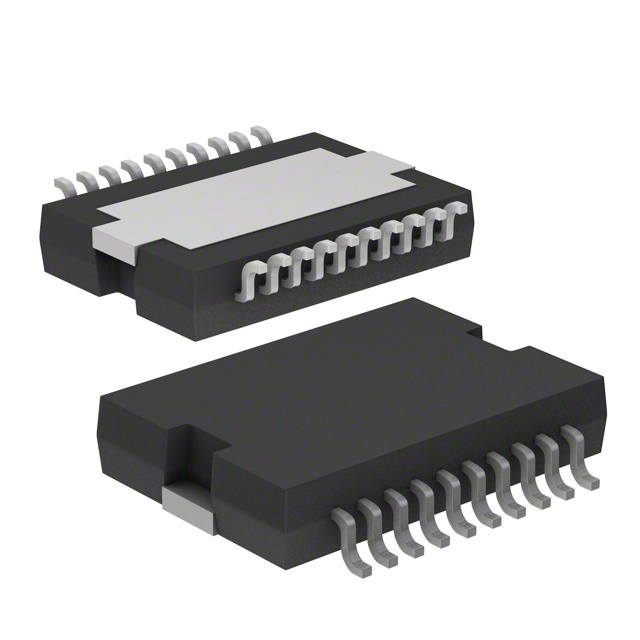

封装 PowerSO-20
封装 PowerSO-20
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
L9825TR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
L9825 意法半导体 | 完全替代 | L9825TR和L9825的区别 |
