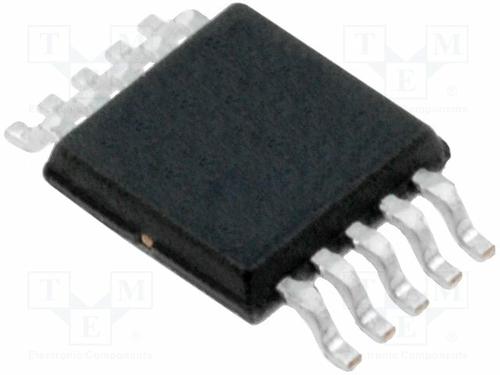

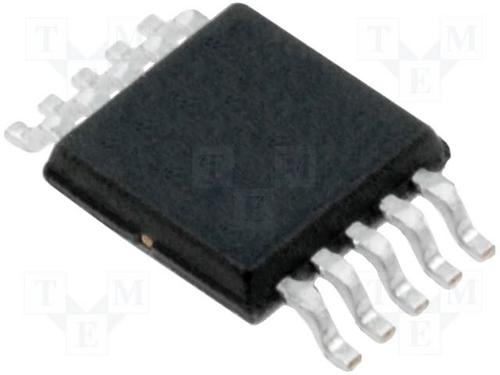

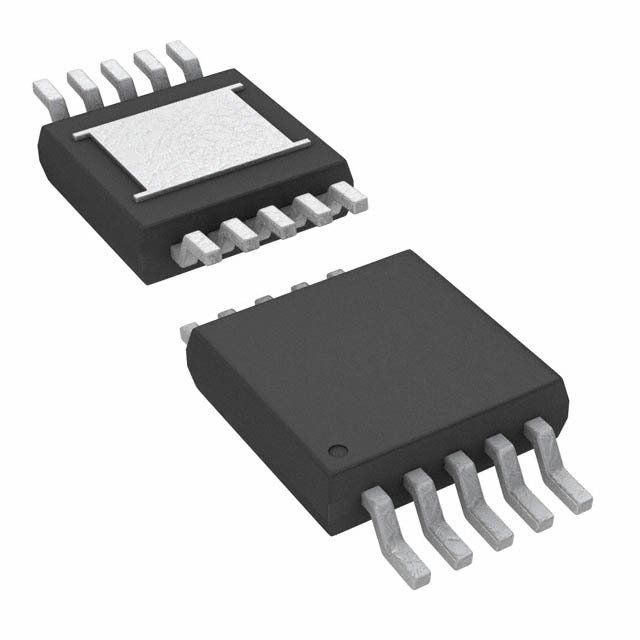

LINEAR TECHNOLOGY LTC3805HMSE#PBF 直流/直流控制器, 可调频率, 8.4V至75V, 1路输出, 反激, 700kHz, MSOP-10
Need to change voltage levels in a DC circuit? Use the flyback DC voltage controller from . This DC voltage controller has single output. With an output that has a voltage of 75Max V, this is power management at its best. This DC voltage controller has an input voltage of 8.8 to 75 V. You can operate this at a switching frequency of 70 to 700 kHz. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 150 °C.
频率 700 kHz
电源电压DC 8.40V min
输出接口数 1
输出电压 ≤75 V
输出电流 10 A
针脚数 10
开关频率 700 kHz
占空比 95 %
输入电压Max 75 V
输入电压Min 8.8 V
输出电压Max 5 V
输出电流Max 2 A
最大占空比 0.8
工作温度Max 150 ℃
工作温度Min -40 ℃
精度 1.5 %
电源电压 3.95V ~ 75V
电源电压Max 75 V
电源电压Min 8.4 V
输入电压 8.8V ~ 75V
安装方式 Surface Mount
引脚数 10
封装 MSOP-10
封装 MSOP-10
工作温度 -40℃ ~ 150℃
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC3805HMSE#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3805EMSE#PBF 凌力尔特 | 类似代替 | LTC3805HMSE#PBF和LTC3805EMSE#PBF的区别 |
LTC3805HMSE-5#PBF 凌力尔特 | 类似代替 | LTC3805HMSE#PBF和LTC3805HMSE-5#PBF的区别 |
LTC3805IMSE#PBF 凌力尔特 | 类似代替 | LTC3805HMSE#PBF和LTC3805IMSE#PBF的区别 |
