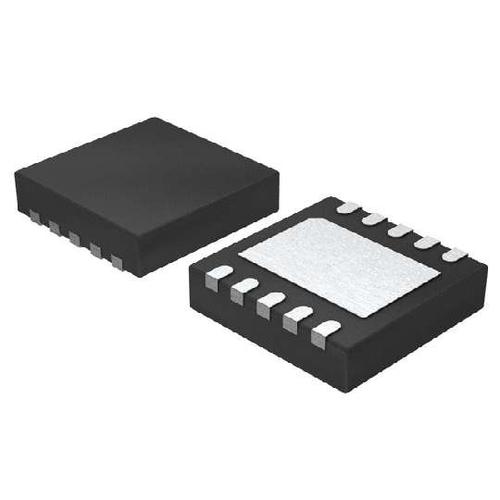

LT3472EDD#PBF图片1
LT3472EDD#PBF图片2
LT3472EDD#PBF图片3
LT3472EDD#PBF图片4
LT3472EDD#PBF图片5
LT3472EDD#PBF图片6
LT3472EDD#PBF图片7
LT3472EDD#PBF图片8
LT3472EDD#PBF概述

LINEAR TECHNOLOGY  LT3472EDD#PBF  芯片, 升压稳压器, 双路, 2.2-16V, 1.1MHZ, 10DFN

The is a 2-channel Switching Regulator generates positive and negative outputs for biasing CCD imagers. The device delivers up to -8V at 50mA and 15V at 20mA from a lithium-ion cell, providing bias for many popular CCD imagers. Switching at 1.1MHz, the LT3472 uses tiny, low profile capacitors and inductors and generates low noise outputs that are easy to filter. Schottky diodes are internal and the output voltages are set with one resistor per channel, reducing external component count. The entire solution is less than 1mm profile and occupies just 50mm2. Internal sequencing circuitry disables the negative channel until the positive channel has reached 88% of its final value, ensuring that the sum of the two outputs is always positive. Separate soft-start capacitors for each output allow the ramp of each output to be independently controlled.

.
Internal Schottky diodes
.
Capacitor-programmable soft-start
.
Sequencing - Positive output reaches 88% of final value before negative output begins
.
Requires only one resistor to set output voltage
.
Constant switching frequency ensures low noise outputs
LT3472EDD#PBF中文资料参数规格
技术参数

输出接口数 2

输出电压 34 V

输出电流 50 mA

针脚数 10

开关频率 1.4 MHz

输入电压Max 16 V

输入电压Min 2.2 V

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 2.2 V

输入电压 2.2V ~ 16V

封装参数

安装方式 Surface Mount

引脚数 10

封装 DFN-10

外形尺寸

封装 DFN-10

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Unknown

包装方式 Cut Tape CT

制造应用 Industrial, Power Management

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册

LT3472EDD#PBF引脚图与封装图
LT3472EDD#PBF引脚图
LT3472EDD#PBF封装图
LT3472EDD#PBF封装焊盘图
在线购买LT3472EDD#PBF
型号: LT3472EDD#PBF
制造商: Linear Technology 凌力尔特
描述:LINEAR TECHNOLOGY  LT3472EDD#PBF  芯片, 升压稳压器, 双路, 2.2-16V, 1.1MHZ, 10DFN
