LM5067MWX-1/NOPB

LM5067MWX-1/NOPB图片1
LM5067MWX-1/NOPB图片2
LM5067MWX-1/NOPB图片3
LM5067MWX-1/NOPB图片4
LM5067MWX-1/NOPB图片5
LM5067MWX-1/NOPB图片6
LM5067MWX-1/NOPB图片7
LM5067MWX-1/NOPB概述

热交换电压控制器 Negative Hot Swap / Inrush Current Controller with Power Limiting 14-SOIC -40 to 125

Hot Swap Controller 1 Channel -48V 14-SOIC


得捷:
LM5067 NEGATIVE HOT SWAP / INRUS


立创商城:
LM5067MWX-1/NOPB


德州仪器TI:
-9-V to -80-V hot swap controller with power limiting


贸泽:
热交换电压控制器 Negative Hot Swap / Inrush Current Controller with Power Limiting 14-SOIC -40 to 125


艾睿:
Hot Swap Controller 1-CH -9V N-Channel Negative Voltage 14-Pin SO T/R


安富利:
Hot Swap Controller 1-CH -80V 14-Pin SO T/R


Chip1Stop:
Hot Swap Controller 1-CH -80V 14-Pin SO T/R


Verical:
Hot Swap Controller 1-CH -9V N-Channel Negative Voltage 14-Pin SO T/R


LM5067MWX-1/NOPB中文资料参数规格
技术参数

输出接口数 1

供电电流 2 mA

电路数 1

通道数 1

工作温度Max 125 ℃

工作温度Min -40 ℃

封装参数

安装方式 Surface Mount

引脚数 14

封装 SOIC-14

外形尺寸

高度 2.35 mm

封装 SOIC-14

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 -48V

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

LM5067MWX-1/NOPB引脚图与封装图

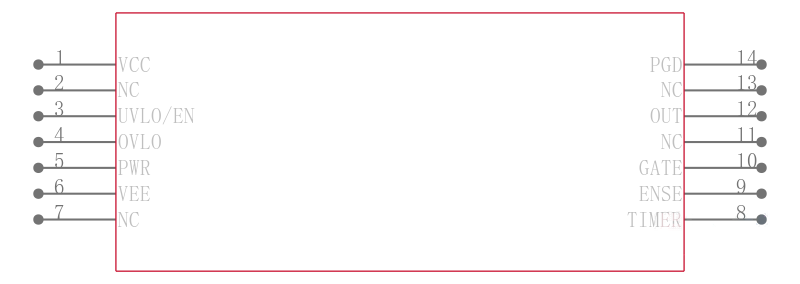

LM5067MWX-1/NOPB引脚图

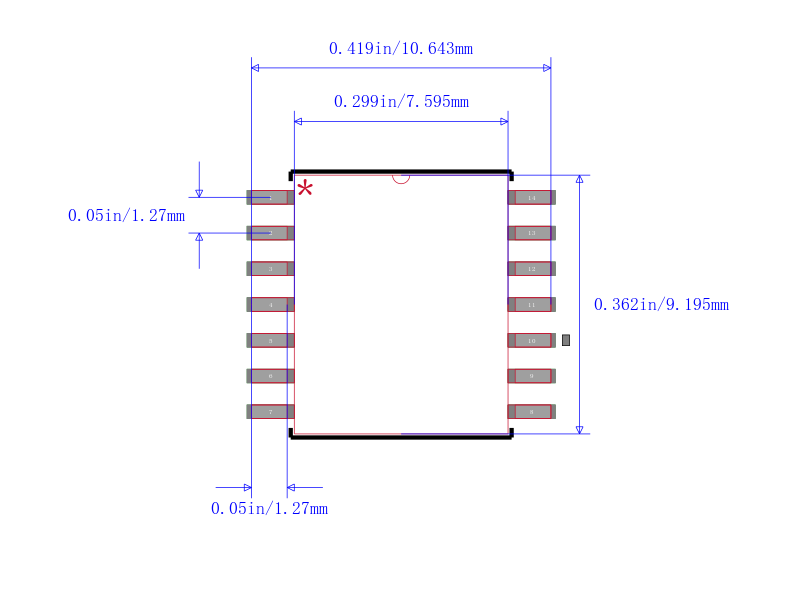

LM5067MWX-1/NOPB封装图
LM5067MWX-1/NOPB封装焊盘图
在线购买LM5067MWX-1/NOPB
型号: LM5067MWX-1/NOPB
制造商: TI 德州仪器
描述:热交换电压控制器 Negative Hot Swap / Inrush Current Controller with Power Limiting 14-SOIC -40 to 125
替代型号LM5067MWX-1/NOPB
型号/品牌 代替类型 替代型号对比

LM5067MWX-1/NOPB

TI 德州仪器

当前型号

当前型号

LM5067MW-1/NOPB

德州仪器

完全替代

LM5067MWX-1/NOPB和LM5067MW-1/NOPB的区别
