开关稳压器 Current-Mode Boost Controller
"s current controller can modulate different levels of voltage, depending on what your requirements are. This current mode controller supports boost|buck|flyback topology. Its single PWM output produces a current of 1500Max mA. This part offers a switching frequency of 360 kHz in order to work properly. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device has a minimum operating supply voltage of 1.9 V and a maximum of 18 V. This current mode controller"s maximum duty cycle is 92Typ %. This current mode controller has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 12.0 V
输出接口数 1
输出电压 1.24V ~ 18V
静态电流 1.80 mA
上升时间 30 ns
开关频率 300 kHz
占空比 92 %
输入电压Max 18 V
输入电压Min 1.9 V
最大占空比 92 %
下降时间 35 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.9V ~ 18V
输入电压 1.9V ~ 18V
安装方式 Surface Mount

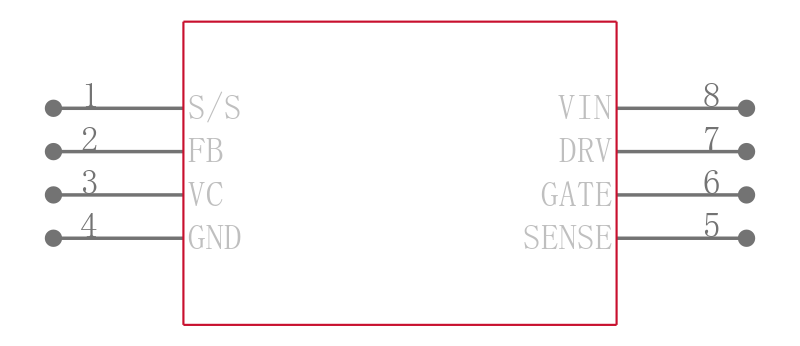

引脚数 8
封装 SOIC-8
高度 1.75 mm
封装 SOIC-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LT1619ES8#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1619ES8#PBF 凌力尔特 | 类似代替 | LT1619ES8#TRPBF和LT1619ES8#PBF的区别 |
