具有使能引脚的 0.1% 3ppm/°C 精密微功耗低压降串联电压基准 8-SOIC 0 to 70
Even in the event of large power supply variations, this voltage reference power management device from Texas Instruments can produce and maintain a precise DC voltage. With a voltage no larger than 5.6 V, this will supply sufficient power to your circuit. With an output that has a voltage of 1.25 V, this is power management at its best. It has an initial accuracy of 0.1%. By operating at a load regulation of 5ppm/mATyp and line regulation of 50ppm/VTyp you can provide a constant voltage at your output. This voltage reference circuit supports series topology. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This voltage reference circuit has a minimum operating temperature of 0 °C and a maximum of 70 °C. It runs with a maximum temperature coefficient of 10ppm/°C.
容差 ±0.1 %
输出电压 1.25 V
输出电流 8 mA
供电电流 375 µA
静态电流 230 µA
跌落电压 160 mV
输入电压Max 5.6 V
输出电压Max 1.25 V
输出电压Min 1.25 V
输出电流Max 8 mA
工作温度Max 70 ℃
工作温度Min 0 ℃
精度 0.1 %
输入电压 1.8V ~ 5.5V
安装方式 Surface Mount

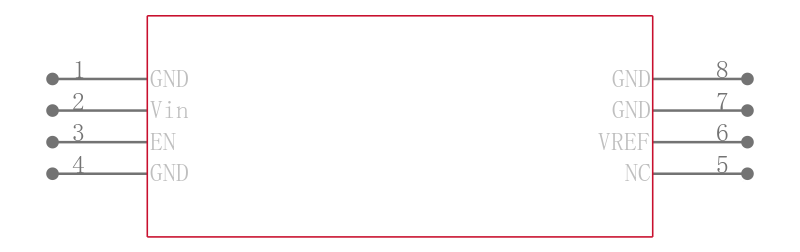

引脚数 8
封装 SOIC-8
长度 4.9 mm
宽度 3.9 mm
高度 1.45 mm
封装 SOIC-8
工作温度 0℃ ~ 70℃
温度系数 ±10 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM4140CCMX-1.2/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM4140ACM-1.2 德州仪器 | 完全替代 | LM4140CCMX-1.2/NOPB和LM4140ACM-1.2的区别 |
LM4140CCM-1.2 德州仪器 | 完全替代 | LM4140CCMX-1.2/NOPB和LM4140CCM-1.2的区别 |
LM4140BCM-1.2 德州仪器 | 完全替代 | LM4140CCMX-1.2/NOPB和LM4140BCM-1.2的区别 |
