LM3151 / LM3152 / LM3153 SIMPLE SWITCHER®控制器,高输入电压同步降压型 LM3151/LM3152/LM3153 SIMPLE SWITCHER® CONTROLLER, High Input Voltage Synchronous Step-Down
If you need to change voltage levels in your DC circuit design use the synchronous step down DC voltage controller from Texas Instruments. This DC voltage controller has single output. Its output produces a current of 12Max A. With an output that has a voltage of 3.3 V, this is power management at its best. This DC voltage controller has an input voltage of 6 to 42 V. Its switching regulator has a frequency of 250Typ kHz. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 125 °C.
频率 250 kHz
输出接口数 1
输出电压 3.3 V
输出电流 12 A
通道数 1
静态电流 3.60 mA
调节输出数 1
开关频率 250 kHz
拓扑结构 Buck
占空比 90 %
输入电压Max 42 V
输入电压Min 6 V
输出电流Max 12 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 6V ~ 42V
输入电压 6V ~ 42V
引脚数 14

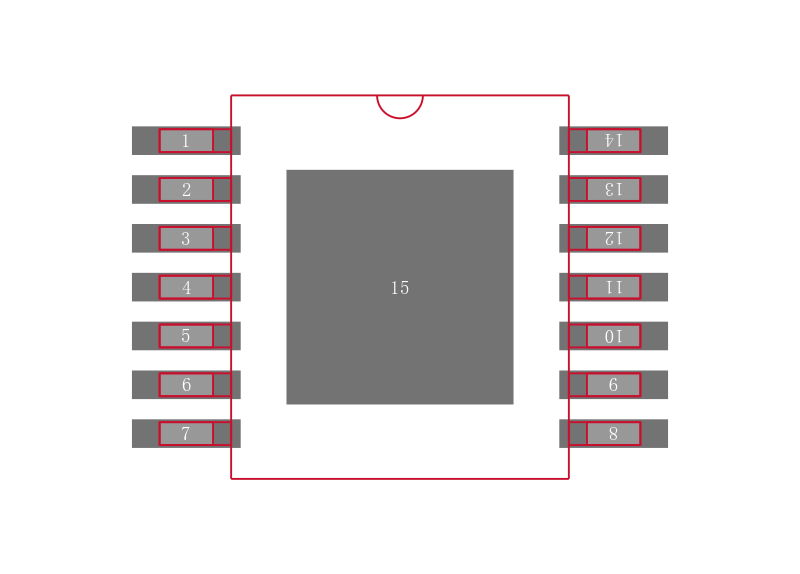

封装 TSSOP-14
封装 TSSOP-14
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM3151MH-3.3/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM3151MHE-3.3/NOPB 德州仪器 | 完全替代 | LM3151MH-3.3/NOPB和LM3151MHE-3.3/NOPB的区别 |
LM3151MHX-3.3/NOPB 德州仪器 | 完全替代 | LM3151MH-3.3/NOPB和LM3151MHX-3.3/NOPB的区别 |
