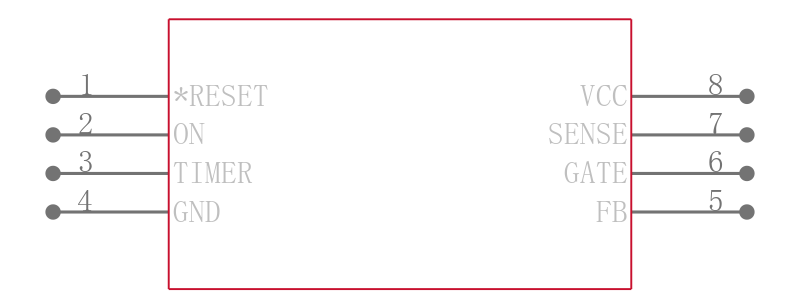

LTC1422CS8

Hot Swap Controller 1CH 12V N-Channel Positive Low Voltage 8Pin SOIC N

DESCRIPTION

The LTC®1422 is an 8-pin Hot SwapTM controller that allows a board to be safely inserted and removed from a live backplane. Using an external N-channel pass transistor, the board supply voltage can be ramped up at a programmable rate. A high side switch driver controls the N-channel gate for supply voltages ranging from 2.7V to 12V.

FEATURES

■ Allows Safe Board Insertion and Removal from a Live Backplane

■ System Reset Output with Programmable Delay

■ Programmable Electronic Circuit Breaker

■ User-Programmable Supply Voltage Power-Up Rate

■ High Side Driver for an External N-Channel FET

■ Controls Supply Voltages from 2.7V to 12V■ Hot Board Insertion

■ Electronic Circuit Breaker

APPLICATIONS

■ Undervoltage Lockout

■ Soft Reset Input

■ Glitch Filter on RESET
