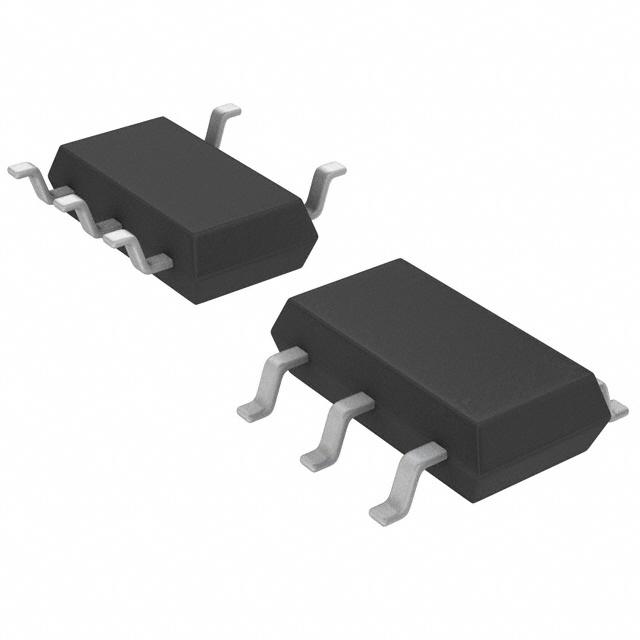

LINEAR TECHNOLOGY LT8309ES5#TRMPBF 芯片, 同步整流驱动器, TSOT-23-5
The is a secondary-side Synchronous Rectifier Driver that replaces the output rectifier diode in a fly back topology. By replacing the diode with a N-channel MOSFET, applications are no longer restricted by the heat constraints of the output diode. The IC replicates the behavior of a diode by sensing the drain-to-source voltage to determine when the current becomes negative. The LT8309"s low minimum on- and OFF-times help improve noise immunity. The fast propagation delay of 26ns allows applications to operate in discontinuous conduction mode DCM and critical conduction mode CrCM. The gate driver features a 0.8R pull-down device for fast turn-OFFs. The 40V VCC rating allows the part to be driven from the output voltage or the rectified drain voltage of the MOSFET. A low quiescent current of 400µA maximizes efficiency at low output currents.
电源电压DC 4.50V min
输出接口数 1
供电电流 300 µA
针脚数 5
输入电压Max 40 V
输入电压Min 4.5 V
下降时间Max 11 ns
上升时间Max 21 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 40V
电源电压Max 40 V
电源电压Min 4.5 V
输入电压 4.5V ~ 40V
安装方式 Surface Mount
引脚数 5
封装 TSOT-23-5
高度 1 mm
封装 TSOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 电源管理, 通信与网络, Signal Processing, 次级侧控制器, 信号处理, Communications & Networking, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
