Step-Down DC/DC Converters Integrated Switch up to 6V Input Max., LM Series, Texas Instruments### 直流/直流开关调节器转换器(集成开关),Texas InstrumentsTexas Instruments 的此系列高度集成的高效开关稳压器包括步升(升压)、步降(降压)、步升/降(增压/降压)和反相类型,为每个直流稳压器应用提供高效的解决方案。
The LM20123 is a full featured 1.5 MHz synchronous buck regulator capable of delivering up to 3A of continuous output current. The current mode control loop can be compensated to be stable with virtually any type of output capacitor. For most cases, compensating the device only requires two external components, providing maximum flexibility and ease of use. The device is optimized to work over the input voltage range of 2.95V to 5.5V making it suited for a wide variety of low voltage systems.
The device features internal over voltage protection OVP and over current protection OCP circuits for increased system reliability. A precision enable pin and integrated UVLO allows the turn on of the device to be tightly controlled and sequenced. Start-up inrush currents are limited by both an internally fixed and externally adjustable Soft-Start circuit. Fault detection and supply sequencing is possible with the integrated power good circuit.
The LM20123 is designed to work well in multi-rail power supply architectures. The output voltage of the device can be configured to track a higher voltage rail using the SS/TRK pin. If the output of the LM20123 is pre-biased at startup it will not sink current to pull the output low until the internal soft-start ramp exceeds the voltage at the feedback pin.

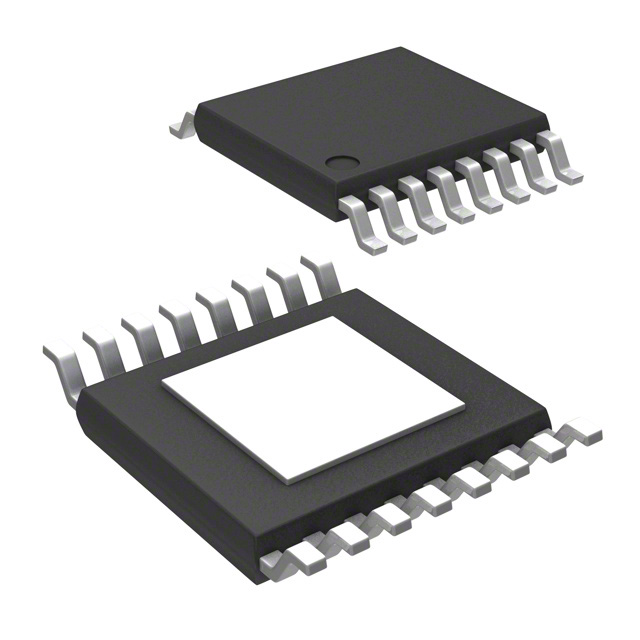

The LM20123 is offered in a 16-pin HTSSOP package with an exposed pad that can be soldered to the PCB, eliminating the need for bulky heatsinks.
输出接口数 1
输出电压 0.8V ~ 5V
输出电流 3 A
静态电流 3.50 mA
调节输出数 1
开关频率 1.5 MHz
拓扑结构 Buck
输入电压Max 5.5 V
输入电压Min 2.95 V
输出电压Max 4.68 V
输出电压Min 0.8 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2.95 V
输入电压 2.95V ~ 5.5V
安装方式 Surface Mount
引脚数 16
封装 TSSOP-16
长度 5 mm
宽度 4.4 mm
高度 0.9 mm
封装 TSSOP-16
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
