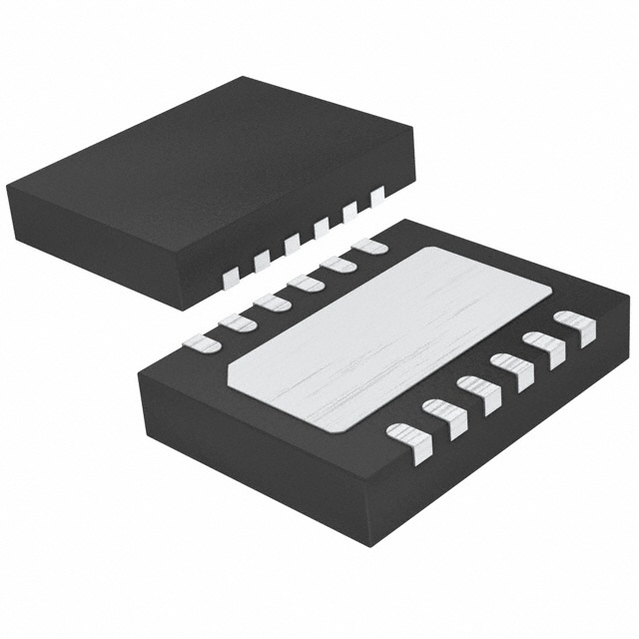

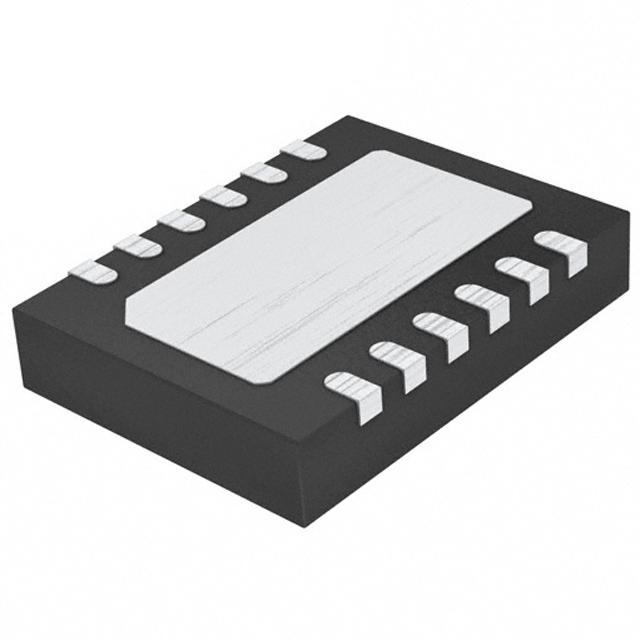

LINEAR TECHNOLOGY LTC4216CDE#PBF 芯片, 热插拔控制器, 15V, 内部开关, 12DFN
The is a positive low voltage Hot Swap Controller allows a board to be safely inserted and removed from a live backplane. It controls load voltages ranging from 0V to 6V and isolates a severe fault with instantaneous analog current limiting. An internal high side switch driver controls the gate of an external N-channel MOSFET. An adjustable soft-start limits the rate of change of the inrush current at start-up for a large load capacitor. Together with an analog current limit amplifier, an electronic circuit breaker with adjustable response time provides dual level overcurrent protection. No external gate capacitor is required for the analog current limit loop compensation. The FB pin monitors the output supply voltage and signals the RESET output pin. An ON pin provides on/off control and a FAULT pin indicates the fault status.
电源电压DC 2.30V min
供电电流 1.6 mA
电路数 1
通道数 1
针脚数 12
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 2.3V ~ 6V
电源电压Max 6 V
电源电压Min 2.3 V
安装方式 Surface Mount
引脚数 12
封装 DFN-12
封装 DFN-12
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
制造应用 Power Management, Industrial, 通用, 电源管理, 通信与网络, Communications & Networking, 工业, Fibre Optics, 光纤
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC4216CDE#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC4216CDE#TRPBF 凌力尔特 | 完全替代 | LTC4216CDE#PBF和LTC4216CDE#TRPBF的区别 |
LTC4216IDE#PBF 凌力尔特 | 类似代替 | LTC4216CDE#PBF和LTC4216IDE#PBF的区别 |
