开关稳压器 Dual Monolithic 300mA Synch Step-Down Reg
Adjust the voltage level of your devices with this synchronous step down DC to DC converter from . This converter"s 2 outputs can produce a current up to 0.3 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.5 V that does not exceed 5.5 V. With an adjustable output that has a voltage of 0.6 to 5.5 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 0.5%Typ and line regulation of 0.5%/V. This converter is 96 % efficient. Its switching regulator has a frequency of 2700 kHz. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This converter has a minimum operating temperature of -40 °C and a maximum of 85 °C.
输出接口数 2
输出电压 0.6V ~ 5.5V
输出电流 300 mA
开关频率 2.25 MHz
输入电压Max 5.5 V
输入电压Min 2.5 V
输出电压Max 5.5 V
输出电压Min 0.6 V
输出电流Max 0.3 a
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 2.5.5.5 V
安装方式 Surface Mount
引脚数 8

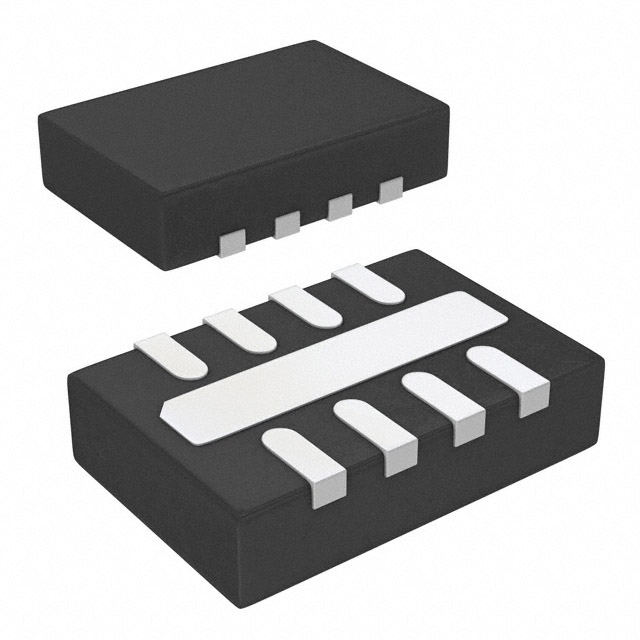

封装 DFN-8
封装 DFN-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC3547EDDB#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3547EDDB#TRMPBF 凌力尔特 | 类似代替 | LTC3547EDDB#TRPBF和LTC3547EDDB#TRMPBF的区别 |
