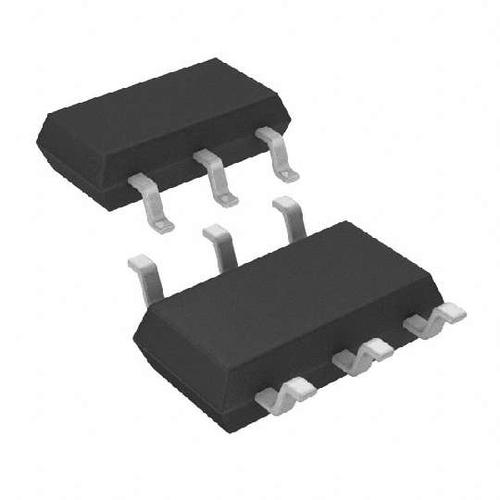

Conv DC-DC 3.6V to 36V Step Down Single-Out 1.245V to 31.68V 1.05A Automotive 6Pin TSOT-23 T/R
Adjust the voltage level of your devices with this step down DC to DC converter from . This converter"s single output can produce a current up to 1.05Typ A. This will operate at a minimum voltage of 3.6 V and a maximum voltage of 36 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 1.245 to 31.68 V, this is power management at its best. A line regulation of 0.01%/VTyp is necessary for providing a constant voltage level at your output. Its switching regulator has a frequency of 600 kHz. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This converter has an operating temperature range of -40 °C to 85 °C.
输出接口数 1
输出电压 1.245V ~ 31.68V
输出电流 600 mA
开关频率 500 kHz
拓扑结构 Buck
开关电流 1.05 a
输入电压Max 36 V
输入电压Min 3.6 V
输出电压Max 33.84 V
输出电压Min 1.245 V
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 6
封装 TSOT-23-6
封装 TSOT-23-6
工作温度 0℃ ~ 70℃ TA
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1933ES6#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1933ES6#TRMPBF 凌力尔特 | 类似代替 | LT1933ES6#TRPBF和LT1933ES6#TRMPBF的区别 |
