V-Ref Precision 5V 10mA 8Pin SOIC N
Even in the event of large power supply variations, this voltage reference power management device from can produce and maintain a precise DC voltage. Using the part will provide the power your application needs by requiring a voltage not exceeding 13 V. With an output that has a voltage of 5 V, this is power management at its best. It has an initial accuracy of 0.15%. This voltage reference circuit supports series topology. At a load regulation of 4mV/mA and line regulation of 120ppm/V your circuit is capable of maintaining a constant voltage level at your output. It runs with a maximum temperature coefficient of 40ppm/°C. This voltage reference circuit has an operating temperature range of 0 °C to 70 °C.
容差 ±0.15 %
输出电压 5 V
输出电流 10 mA
供电电流 8.5 µA
通道数 1
输入电压Max 13 V
输出电压Min 5 V
输出电流Max 10 mA
工作温度Max 70 ℃
工作温度Min 0 ℃
输入电压 5.2V ~ 12.6V
安装方式 Surface Mount

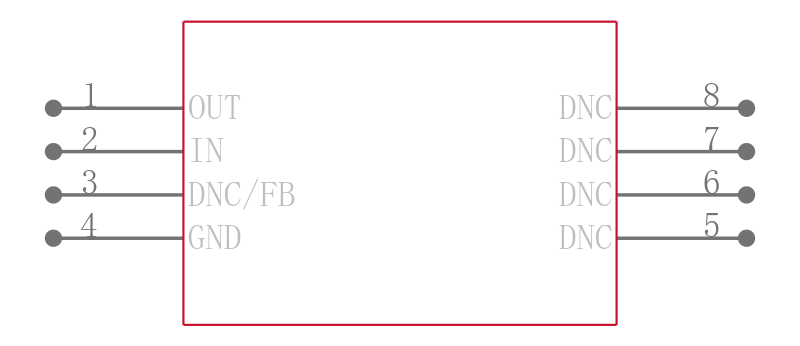

引脚数 8
封装 SOIC-8
高度 1.5 mm
封装 SOIC-8
工作温度 0℃ ~ 70℃ TA
温度系数 ±40 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
