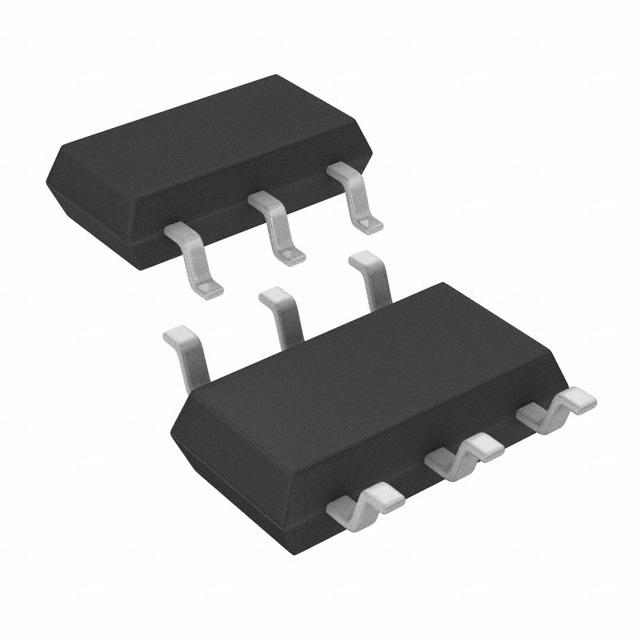

SC-Refs/Series 1uA Precision SOT-23 Reference 20ppm, 0.1%
Even in the event of large power supply variations, this voltage reference power management device from can produce and maintain a precise DC voltage. With an output that has a voltage of 2.048 V, this is power management at its best. It has an initial accuracy of 0.1%. The best way to provide power to your application is by using this, which needs a voltage lower than 20 V. This voltage reference circuit supports series topology. Operate at a constant current by utilizing the load regulation of 150ppm/mA and line regulation of 25ppm/V. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This voltage reference circuit has a minimum operating temperature of -40 °C and a maximum of 85 °C. It runs with a maximum temperature coefficient of 20ppm/°C.
容差 ±0.1 %
输出电压 2.048 V
输出电流 5 mA
供电电流 1.5 µA
输入电压Max 20 V
输出电压Min 2.048 V
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 2.548V ~ 18V
安装方式 Surface Mount
引脚数 6
封装 TSOT-23-6
封装 TSOT-23-6
工作温度 -40℃ ~ 85℃ TA
温度系数 ±20 ppm/℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT6656BIS6-2.048#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT6656BIS6-2.048#TRPBF 凌力尔特 | 完全替代 | LT6656BIS6-2.048#TRMPBF和LT6656BIS6-2.048#TRPBF的区别 |
