Conv DC-DC 2V to 5.5V Synchronous Step Down Single-Out 0.62V 0.5A 8Pin MSOP Tube
Adjust the voltage level of your devices with this synchronous step down DC to DC converter from . This converter"s single output can produce a current up to 0.5 A. This will operate at a minimum voltage of 2 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 0.62Min V, this is power management at its best. Users like the line regulation of 0.15%/V. Its switching regulator has a frequency of 900 kHz. This converter has a minimum operating temperature of -40 °C and a maximum of 85 °C.
输出接口数 1
输出电流 500 mA
开关频率 800 kHz
输入电压Max 5.5 V
输入电压Min 2 V
输出电压Max 4.95 V
输出电压Min 0.62 V
输出电流Max 0.5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2 V
输入电压 2V ~ 5.5V
安装方式 Surface Mount
引脚数 8

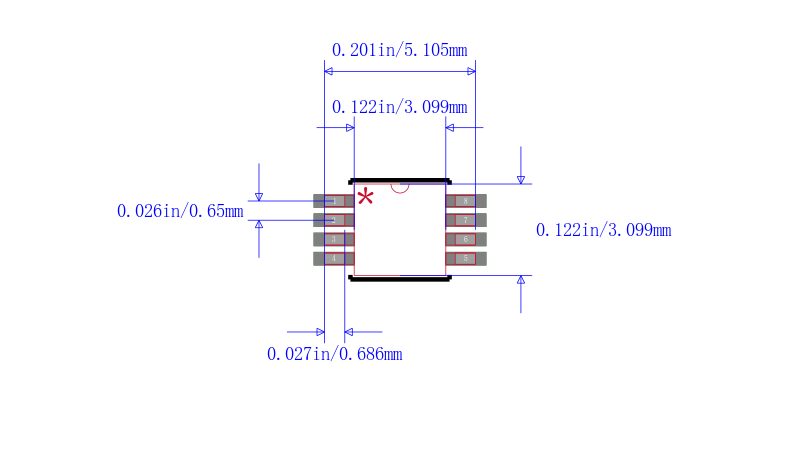

封装 MSOP-8
封装 MSOP-8
工作温度 0℃ ~ 70℃ TA
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
