具有高效睡眠模式的 3A 开关稳压器 20-HTSSOP -40 to 125
Buck Switching Regulator IC Positive Adjustable 1.236V 1 Output 3A 20-PowerTSSOP 0.173", 4.40mm Width
得捷:
IC REG BUCK ADJ 3A 20HTSSOP
立创商城:
LM26003MHX/NOPB
德州仪器TI:
3A Switching Regulator with High Efficiency Sleep Mode
贸泽:
Switching Voltage Regulators 3A Switching Reg
艾睿:
Adjust the voltage level of your devices with this step down LM26003MHX/NOPB DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 3 A. Using the part will provide the power your application needs by requiring a voltage only of 3 V and not exceeding a voltage of 38 V. With an adjustable output that has a voltage of 1.25 to 35 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 0.08%/A and line regulation of 0.00025%/VTyp. This converter is 92 % efficient. You can operate this at a switching frequency of 150 to 500 kHz. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
安富利:
Conv DC-DC Single Step Down 3V to 38V 20-Pin TSSOP EP T/R
Chip1Stop:
Conv DC-DC Single Step Down 3V to 38V 20-Pin TSSOP EP T/R
Verical:
Conv DC-DC 3V to 38V Step Down Single-Out 1.25V to 35V 3A 20-Pin TSSOP EP T/R
DeviceMart:
IC REG BUCK ADJ 3A 20-TSSOP
Win Source:
Buck Switching Regulator IC Positive Adjustable 1.236V 1 Output 3A 20-TSSOP 0.173", 4.40mm Width Exposed Pad
输出接口数 1
输出电压 1.25V ~ 35V
输出电流 3 A
静态电流 40.0 µA
调节输出数 1
开关频率 150kHz ~ 500kHz
拓扑结构 Buck
输入电压Max 38 V
输入电压Min 3 V
输出电压Max 35 V
输出电压Min 1.236 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min 40 ℃
输入电压 3V ~ 38V
安装方式 Surface Mount
引脚数 20

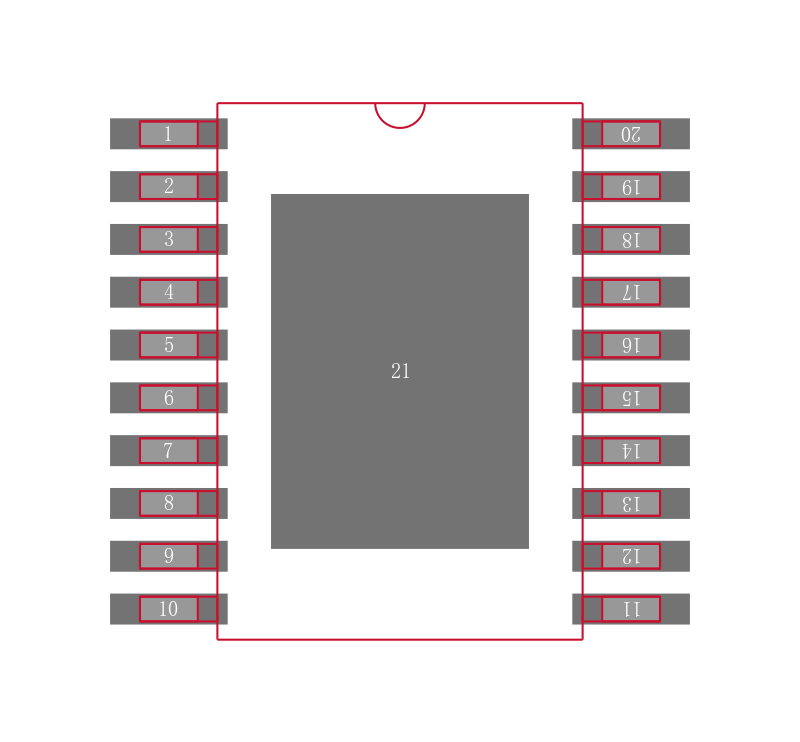

封装 TSSOP-20
长度 6.5 mm
宽度 4.4 mm
高度 0.9 mm
封装 TSSOP-20
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM26003MHX/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM26003MH/NOPB 德州仪器 | 类似代替 | LM26003MHX/NOPB和LM26003MH/NOPB的区别 |
