LM20154 / LM20154 -Q1 4A , 1MHz的同步降压稳压器与SYNCOUT LM20154/LM20154-Q1 4A, 1MHz Synchronous Buck Regulator with SYNCOUT
Adjust the voltage level of your devices with this step down DC to DC converter from Texas Instruments. This converter"s single output can produce a current up to 4 A. With a small input voltage of 2.95 V and a max of 5.5 V, this will supply sufficient power to your circuit. With an adjustable output that has a voltage of 0.8 to 5 V, this is power management at its best. This converter is 96 % efficient. At a load regulation of 0.08%/ATyp your circuit is capable of maintaining a constant voltage level at your output. It has a switching frequency of 1000Typ kHz. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 1
输出电压 0.8V ~ 5V
输出电流 4 A
调节输出数 1
开关频率 1 MHz
拓扑结构 Buck
输入电压Max 5.5 V
输入电压Min 2.95 V
输出电压Max 4.68 V
输出电压Min 0.8 V
输出电流Max 4 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 5.5 V
安装方式 Surface Mount

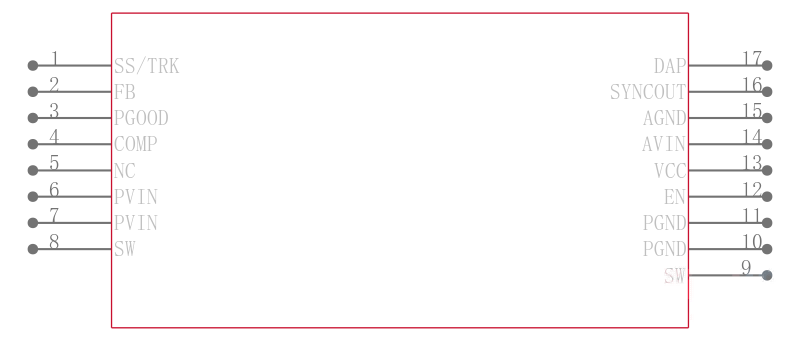

引脚数 16

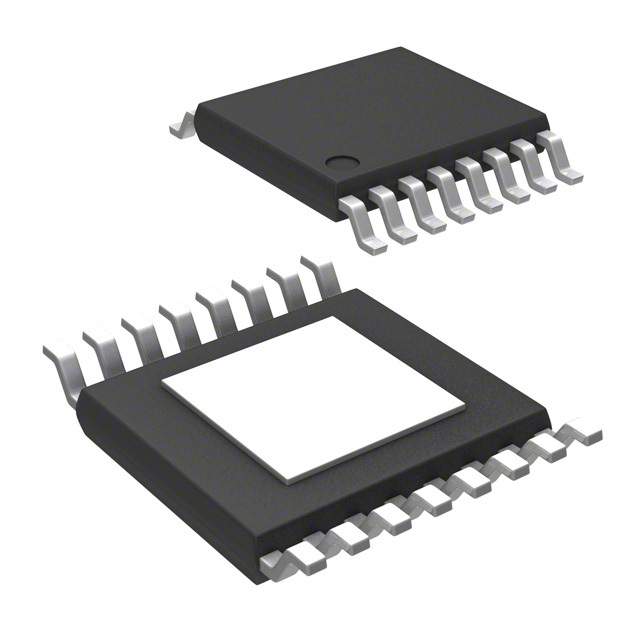

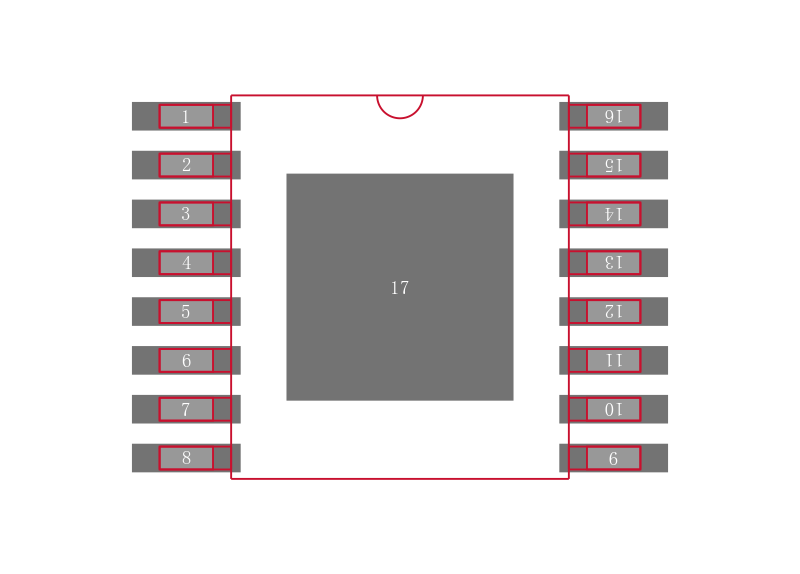

封装 TSSOP-16
封装 TSSOP-16
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM20154MHX/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM20154MH/NOPB 德州仪器 | 类似代替 | LM20154MHX/NOPB和LM20154MH/NOPB的区别 |
LM20154MHE/NOPB 德州仪器 | 类似代替 | LM20154MHX/NOPB和LM20154MHE/NOPB的区别 |
