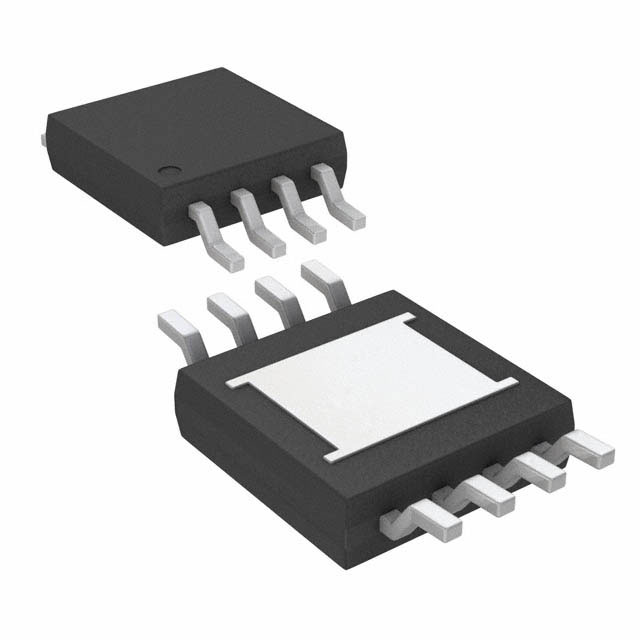

LT3080EMS8E-1#PBF

LINEAR TECHNOLOGY  LT3080EMS8E-1#PBF  电压稳压器, LDO, 可调, 1.2V至36V输入, 350mV压差, 0V至36V/1.1A输出, MSOP-8

The is a low-dropout Linear Regulator that incorporates an internal ballast resistor to allow direct paralleling of devices without the need for PC board trace resistors. The internal ballast resistor allows multiple devices to be paralleled directly on a surface mount board for higher output current and power dissipation while keeping board layout simple and easy. The device brings out the collector of the pass transistor to allow low dropout operation-down to 350mV - when used with multiple input supplies. The LT3080-1 is capable of supplying a wide output voltage range. A reference current through a single resistor programs the output voltage to any level between zero and 36V. The LT3080-1 is stable with 2.2µF of ceramic capacitance on the output, not requiring additional ESR as is common with other regulators. Internal protection includes current limiting and thermal limiting.

.

Ballast resistor permits direct connection to power plane for higher current/heat spreading

.

Single resistor programs output voltage

.

Current limit with fold-back and overtemperature protected

.

1% Initial accuracy of SET pin current

.

<0.001%/V Line regulation
