LT3014 - 20mA, 3V to 80V Low Dropout Micropower Linear Regulator
Use the LDO linear regulator from to maintain a constant output voltage. Its typical dropout voltage at current is 0.12@100uA|0.2@1mA|0.3@10mA|0.35@20mA V. This voltage regulation device"s single output can produce a current up to 0.02 A. Using the part will provide the power your application needs by requiring a voltage only of 3 V and not exceeding a voltage of 80 V. With an adjustable output that has a voltage of 1.22 to 60 V, this is power management at its best. At a load regulation of 25mV and line regulation of 10mV your circuit is capable of maintaining a constant voltage level at your output. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.18@100uA|0.27@1mA|0.35@10mA|0.41@20mA V. Its polarity is positive.
输出接口数 1
输出电压 1.22V ~ 60V
输出电流 20 mA
供电电流 20µA ~ 1mA
输入电压Max 80 V
输入电压Min 3 V
输出电压Max 60 V
输出电压Min 1.22 V
输出电流Max 0.02 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 3V ~ 80V
安装方式 Surface Mount
引脚数 5

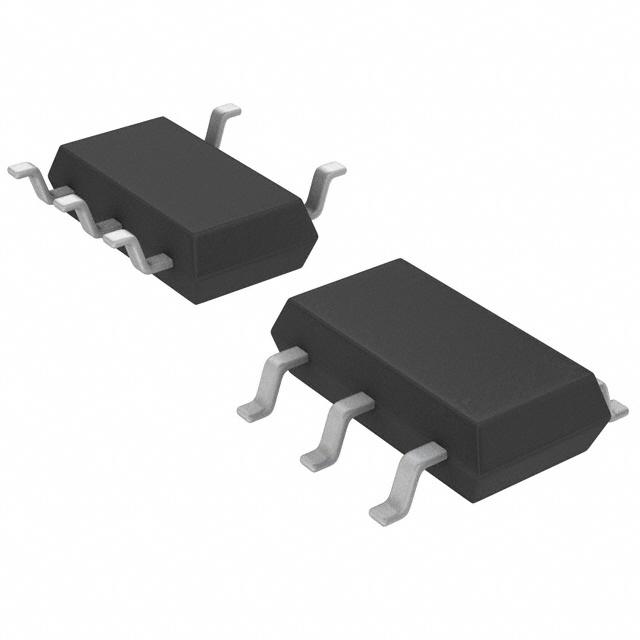

封装 TSOT-23-5
封装 TSOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT3014HVIS5#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT3014HVIS5#TRPBF 凌力尔特 | 完全替代 | LT3014HVIS5#TRMPBF和LT3014HVIS5#TRPBF的区别 |
