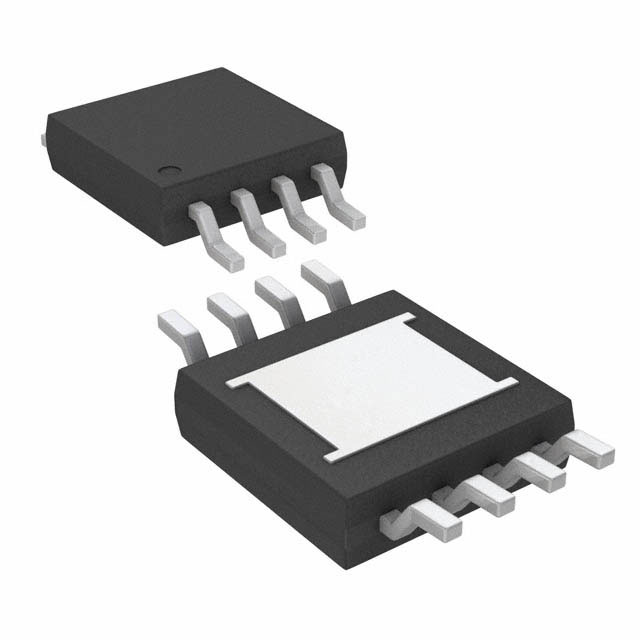

LDO Regulator Pos 1.5V 1.1A Automotive 8Pin MSOP EP
Maintain a steady voltage level with this LDO linear regulator from . Its typical dropout voltage at current is 0.055@1mA|0.12@100mA|0.21@500mA|0.31@1100mA V. This voltage regulation device"s single output can produce a current up to 1.1 A. This will operate at a minimum voltage of 1.8 V and a maximum voltage of 20 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 1.5 V, this is power management at its best. Using a load regulation of 10mV and line regulation of 9mV is needed for a programmable DC power supply. Its polarity is positive. The maximum dropout voltage is 0.08@1mA|0.175@100mA|0.25@500mA|0.36@1100mA V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
输出接口数 1
输出电压 1.5 V
输出电流 1.1 A
供电电流 1.1mA ~ 40mA
跌落电压 0.055V @1mA,0.12V @100mA,0.21V @500mA,0.31V @1100mA
输入电压Max 20 V
输入电压Min 1.8 V
输出电压Min 1.5 V
输出电流Max 1.1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 ≤20 V
安装方式 Surface Mount
引脚数 8
封装 MSOP-8
高度 0.86 mm
封装 MSOP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LT1965EMS8E-1.5#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1965IMS8E-1.5#PBF 凌力尔特 | 完全替代 | LT1965EMS8E-1.5#PBF和LT1965IMS8E-1.5#PBF的区别 |
LT1965EMS8E-1.5#TRPBF 凌力尔特 | 完全替代 | LT1965EMS8E-1.5#PBF和LT1965EMS8E-1.5#TRPBF的区别 |
LT1965IMS8E-1.5#TRPBF 凌力尔特 | 完全替代 | LT1965EMS8E-1.5#PBF和LT1965IMS8E-1.5#TRPBF的区别 |
