LT1963EST-2.5#PBF

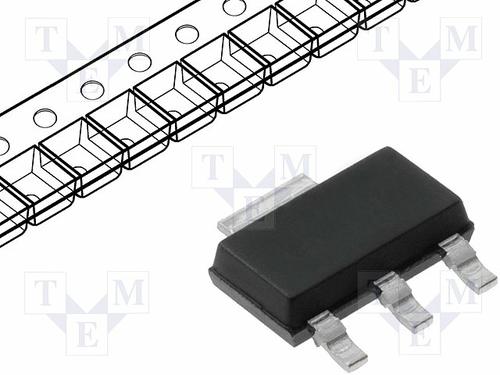

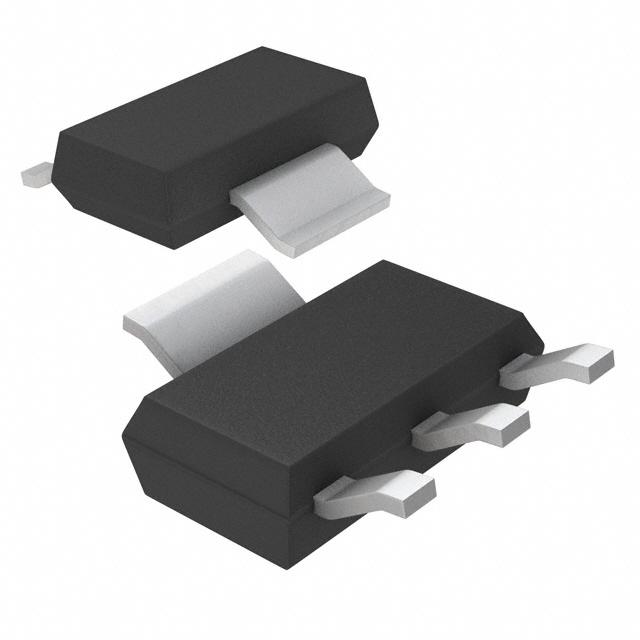

LINEAR TECHNOLOGY  LT1963EST-2.5#PBF  固定电压稳压器, LDO, 2.1V至20V, 340mV压差, 2.5V输出, 1.5A输出, SOT-223-3

The is a 2.5V fixed output low-dropout LDO Linear Regulator optimized for fast transient response. The device is capable of supplying 1.5A of output current with a dropout voltage of 340mV. Operating quiescent current is 1mA, dropping to <1µA in shutdown. Quiescent current is well controlled and it does not rise in dropout as it does with many other regulators. In addition to fast transient response, the device have very low output noise which makes them ideal for sensitive RF supply applications.

.

40µVrms Low noise 10Hz to 100kHz

.

No protection diodes needed

.

Controlled quiescent current in dropout

.

Stable with 10µF output capacitor

.

Reverse battery protection

.

No reverse current

.

Thermal limiting
