LDO Regulator Pos 1.22V to 20V 0.5A 12Pin DFN EP T/R
Having trouble maintaining a steady voltage? This LDO linear regulator from will give you control over the voltage levels of your circuit. Its typical dropout voltage at current is 0.13@10mA|0.17@50mA|0.2@100mA|0.3@500mA V. This voltage regulation device"s single output can produce a current up to 0.5 A. Use this part at voltages between 1.8 V and 20 V. With an adjustable output that has a voltage of 1.22 to 20 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 6mV and line regulation of 5mV. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. The maximum dropout voltage is 0.19@10mA|0.22@50mA|0.24@100mA|0.35@500mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
输出接口数 1
输出电压 1.22V ~ 20V
输出电流 500 mA
跌落电压 0.13V @10mA,0.17V @50mA,0.2V @100mA,0.3V @500mA
输入电压Max 20 V
输入电压Min 1.8 V
输出电压Max 20 V
输出电压Min 1.22 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 1.8V ~ 20V
安装方式 Surface Mount
引脚数 12

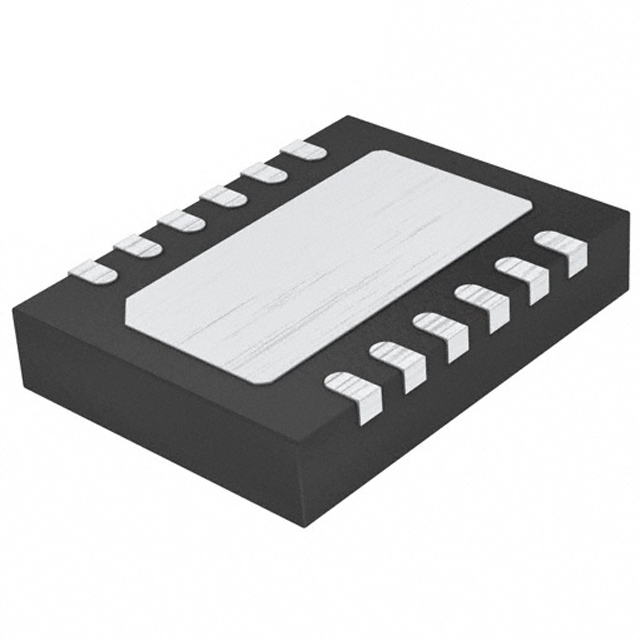

封装 DFN-12
高度 0.75 mm
封装 DFN-12
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1763CDE#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1763IDE 凌力尔特 | 完全替代 | LT1763CDE#TRPBF和LT1763IDE的区别 |
LT1763CDE#PBF 凌力尔特 | 类似代替 | LT1763CDE#TRPBF和LT1763CDE#PBF的区别 |
LT1763CDE 凌力尔特 | 类似代替 | LT1763CDE#TRPBF和LT1763CDE的区别 |
