具有输入同步功能的 2.95-5.5V、6A 电流模式同步降压稳压器 16-HTSSOP -40 to 125
Adjust the voltage level of your devices with this step down DC to DC converter from Texas Instruments. This converter"s single output can produce a current up to 6 A. With a small input voltage of 2.95 V and a max of 5.5 V, this will supply sufficient power to your circuit. With an adjustable output that has a voltage of 0.8 to 5 V, this is power management at its best. A load regulation of 0.04%/ATyp is necessary for providing a constant voltage level at your output. This converter is 97 % efficient. It has a switching frequency of 410Typ kHz. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 1
输出电压 0.8V ~ 5V
输出电流 6 A
静态电流 3.50 mA
调节输出数 1
开关频率 410 kHz
拓扑结构 Buck
输入电压Max 5.5 V
输入电压Min 2.95 V
输出电压Max 4.68 V
输出电压Min 0.8 V
输出电流Max 6 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2.95 V
输入电压 2.95 V
安装方式 Surface Mount
引脚数 16

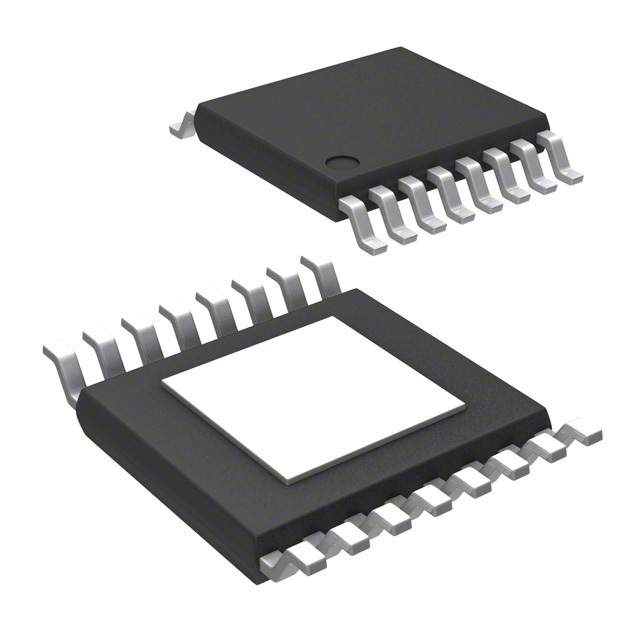

封装 TSSOP-16
封装 TSSOP-16
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM20136MHE/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM20136MH/NOPB 德州仪器 | 类似代替 | LM20136MHE/NOPB和LM20136MH/NOPB的区别 |
LM20136MHX/NOPB 德州仪器 | 类似代替 | LM20136MHE/NOPB和LM20136MHX/NOPB的区别 |
