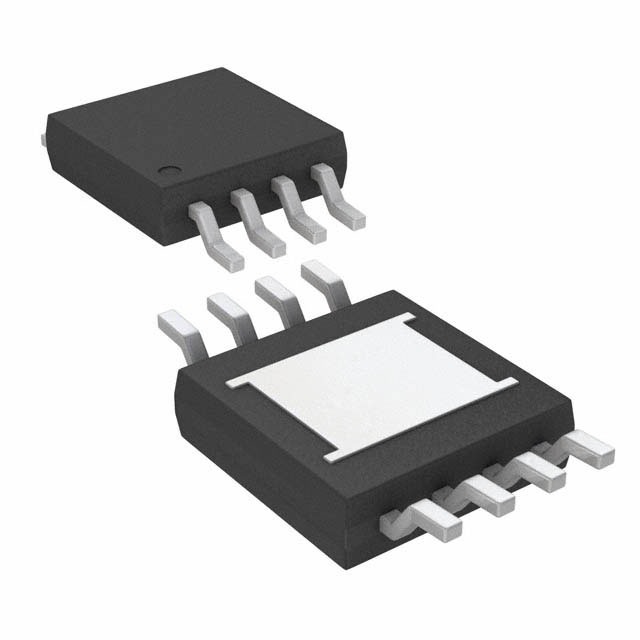

LINEAR TECHNOLOGY LT3085IMS8E#PBF 电压稳压器, LDO, 可调, 2.6V至36V输入, 275mV压差, 0V至36V/0.5A输出, SOP-8
The is a low-dropout Linear Regulator that can be paralleled to increase output current or spread heat on surface mounted boards. Designed as a precision current source and voltage follower, this new regulator finds use in many applications requiring high current, adjustability to zero and no heat sink. The device also brings out the collector of the pass transistor to allow low dropout operation-down to 275mV - when used with a second supply. A key feature of the LT3085 is the capability to supply a wide output voltage range. By using a reference current through a single resistor, the output voltage is programmed to any level between zero and 36V. The LT3085 is stable with 2.2µF of capacitance on the output and the IC uses small ceramic capacitors that do not require additional ESR as is common with other regulators. Internal protection circuitry includes current limiting and thermal limiting.
输出接口数 1
输出电压 0V ~ 36V
输出电流 500 mA
供电电流 10.1µA ~ 1mA
针脚数 8
跌落电压 275 mV
输入电压Max 36 V
输入电压Min 2.6 V
输出电压Max 36 V
输出电压Min 0 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 1.2V ~ 36V
安装方式 Surface Mount
引脚数 8
封装 TSSOP-8
高度 0.86 mm
封装 TSSOP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Each
制造应用 Power Management, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT3085IMS8E#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT3085IMS8E#TRPBF 凌力尔特 | 完全替代 | LT3085IMS8E#PBF和LT3085IMS8E#TRPBF的区别 |
LT3085MPMS8E#PBF 凌力尔特 | 类似代替 | LT3085IMS8E#PBF和LT3085MPMS8E#PBF的区别 |
LT3085EMS8E#PBF 凌力尔特 | 功能相似 | LT3085IMS8E#PBF和LT3085EMS8E#PBF的区别 |
