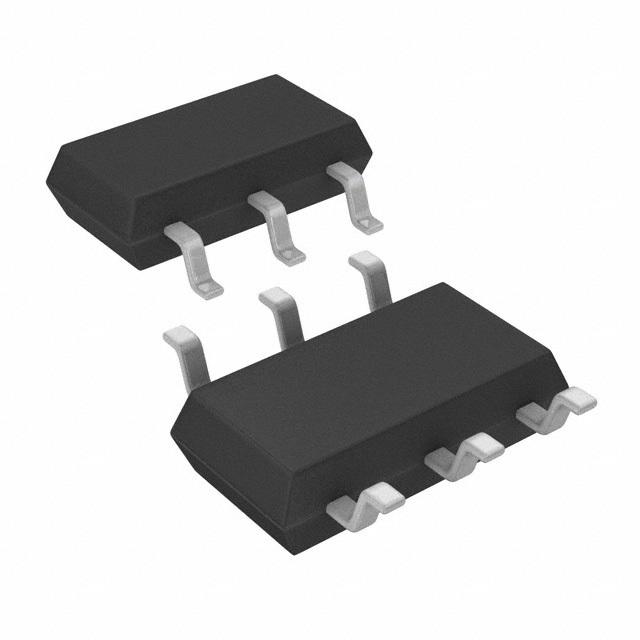

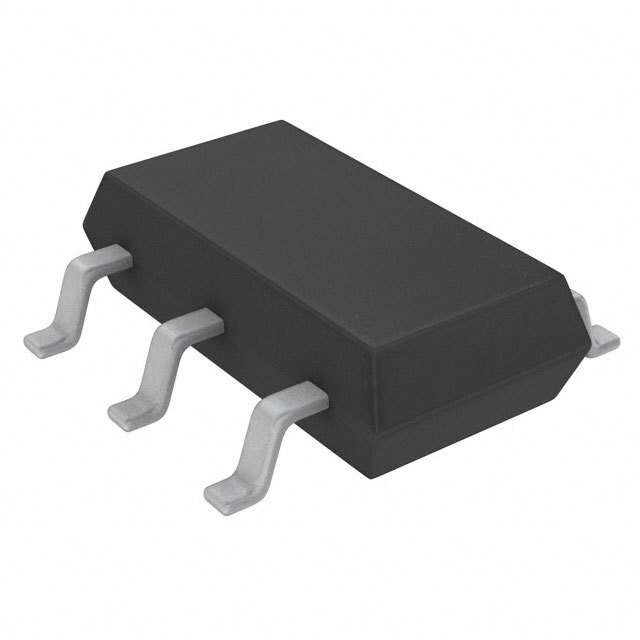

LINEAR TECHNOLOGY LTC4440IS6#TRMPBF 驱动器, MOSFET, 高压侧和低压侧, 6.5V-80V电源, 2.4A输出, 28ns延迟, SOT-23-6
The is a high frequency high-side N-channel MOSFET Gate Driver designed to operate in applications with VIN voltages up to 80V. The LTC4440 can also withstand and continue to function during 100V VIN transients. The powerful driver capability reduces switching losses in MOSFETs with high gate capacitances. The LTC4440 pull-up has a peak output current of 2.4A and its pull-down has an output impedance of 1.5R. The LTC4440 features supply independent TTL/CMOS compatible input thresholds with 350mV of hysteresis. The input logic signal is internally level-shifted to the bootstrapped supply, which may function at up to 115V above ground.
电源电压DC 6.50V min
上升/下降时间 10ns, 7ns
输出接口数 1
针脚数 6
下降时间Max 70 ns
上升时间Max 100 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 8V ~ 15V
电源电压Max 80 V
电源电压Min 6.5 V
安装方式 Surface Mount
引脚数 6
封装 TSOT-23-6
封装 TSOT-23-6
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Unknown
包装方式 Tape & Reel TR
制造应用 Power Management, 通信与网络, 电源管理, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC4440IS6#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
