LM3151 / LM3152 / LM3153 SIMPLE SWITCHER®控制器,高输入电压同步降压型 LM3151/LM3152/LM3153 SIMPLE SWITCHER® CONTROLLER, High Input Voltage Synchronous Step-Down
降压 稳压器 正 输出 降压 - DC DC 切换控制器 IC 14-HTSSOP
得捷:
IC REG CTRLR BUCK 14TSSOP
立创商城:
降压型 6V~33V 500kHz
德州仪器TI:
42V Synchronous Step-Down Controller with 3.3V Output and 500kHz Switching Frequency
贸泽:
开关控制器 SIMPLE SWITCHER CONTROLLER, 42V Synchro
艾睿:
Need to change voltage levels in a DC circuit? Use the synchronous step down LM3152MHE-3.3/NOPB DC voltage controller from Texas Instruments. With an output that has a voltage of 3.3 V, this is power management at its best. This DC voltage controller has single output. Its output produces a current of 12Max A. This DC voltage controller has an input voltage of 6 to 33 V. This part offers a switching frequency of 500Typ kHz in order to work properly. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This DC voltage controller has an operating temperature range of -40 °C to 125 °C.
安富利:
DC DC Cntrlr Single-OUT Sync Step Down 6V to 33V Input 14-Pin TSSOP EP T/R
Chip1Stop:
DC DC Cntrlr Single-OUT Sync Step Down 6V to 33V Input 14-Pin HTSSOP EP T/R
Verical:
DC DC Cntrlr Single-OUT Sync Step Down 6V to 33V Input 14-Pin HTSSOP EP T/R
DeviceMart:
IC REG CTRLR BUCK PWM 14-TSSOP
电源电压DC 6.00V min
输出接口数 1
输出电压 3.3 V
输出电流 12 A
静态电流 3.60 mA
调节输出数 1
开关频率 500 kHz
拓扑结构 Buck
占空比 81 %
输入电压Max 33 V
输入电压Min 6 V
输出电流Max 12 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 6V ~ 33V
输入电压 6V ~ 33V
引脚数 14

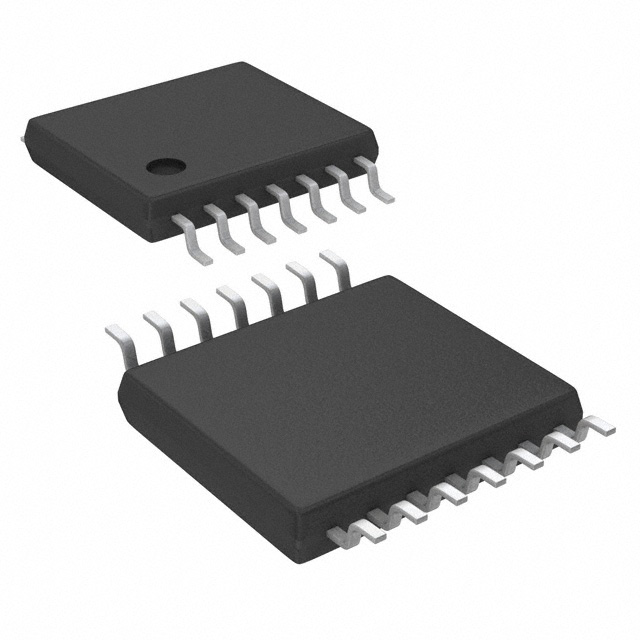

封装 TSSOP-14
封装 TSSOP-14
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM3152MHE-3.3/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM3152MH-3.3/NOPB 德州仪器 | 完全替代 | LM3152MHE-3.3/NOPB和LM3152MH-3.3/NOPB的区别 |
