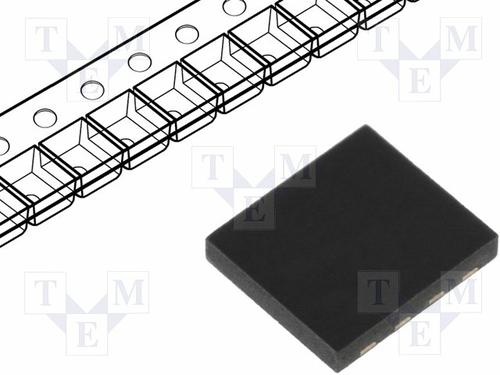

LINEAR TECHNOLOGY LTC3561AIDD#PBF 直流-直流开关降压逐步递减稳压器, 可调, 2.5V-5.5V输入, 800mV-5.5V输出, 1A输出, DFN-8
Adjust the voltage level of your devices with this synchronous step down DC to DC converter from . This converter"s single output can produce a current up to 1 A. Using the part will provide the power your application needs by requiring a voltage only of 2.5 V and not exceeding a voltage of 5.5 V. With an adjustable output that has a voltage of 0.8 to 5.5 V, this is power management at its best. This converter is 96 % efficient. To produce a constant current at your output, supply your circuit with a load regulation of 0.2% and line regulation of 0.2%/V. It has a switching frequency of 4000 kHz. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 1
输出电压 0.8V ~ 5.5V
输出电流 1 A
针脚数 8
开关频率 4 MHz
输入电压Max 5.5 V
输入电压Min 2.5 V
输出电压Max 5.5 V
输出电压Min 800 mV
输出电流Max 1 a
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2.5 V
输入电压 2.5V ~ 5.5V
安装方式 Surface Mount
引脚数 8
封装 DFN-8
封装 DFN-8
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC3561AIDD#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3561AEDD#PBF 凌力尔特 | 类似代替 | LTC3561AIDD#PBF和LTC3561AEDD#PBF的区别 |
LTC3561AIDD#TRPBF 凌力尔特 | 功能相似 | LTC3561AIDD#PBF和LTC3561AIDD#TRPBF的区别 |
