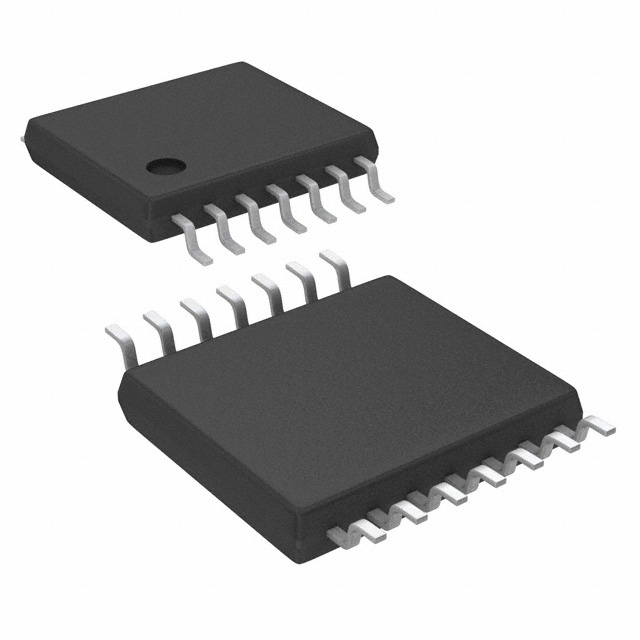

TEXAS INSTRUMENTS LM3153MHE-3.3/NOPB 芯片, 同步降压控制器, 3.3V, 14-ETSSOP
Need to change voltage levels in a DC circuit? Use the synchronous step down DC voltage controller from Texas Instruments. This DC voltage controller has single output. With an output that has a voltage of 3.3 V, this is power management at its best. Its output produces a current of 12Max A. This DC voltage controller has an input voltage of 8 to 18 V. You can operate this at a switching frequency of 750Typ kHz. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This DC voltage controller has an operating temperature range of -40 °C to 125 °C.
电源电压DC 6.00V min
输出接口数 1
输出电压 3.3 V
输出电流 12 A

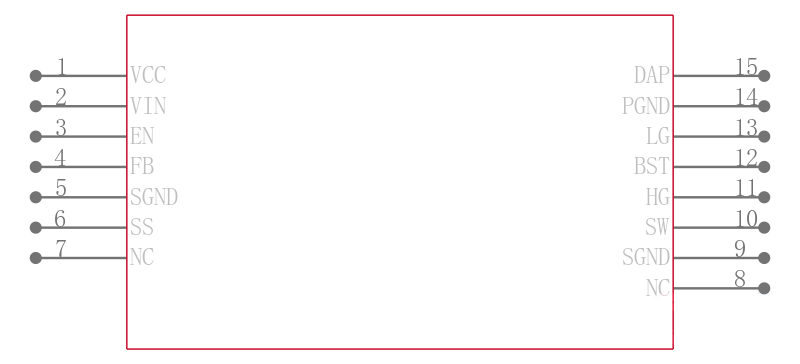

针脚数 14
静态电流 3.60 mA
调节输出数 1
开关频率 750 kHz
拓扑结构 Buck
占空比 81 %
输入电压Max 18 V
输入电压Min 8 V
输出电流Max 12 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 8V ~ 18V
电源电压Max 42 V
电源电压Min 6 V
输入电压 8V ~ 18V
安装方式 Surface Mount
引脚数 14

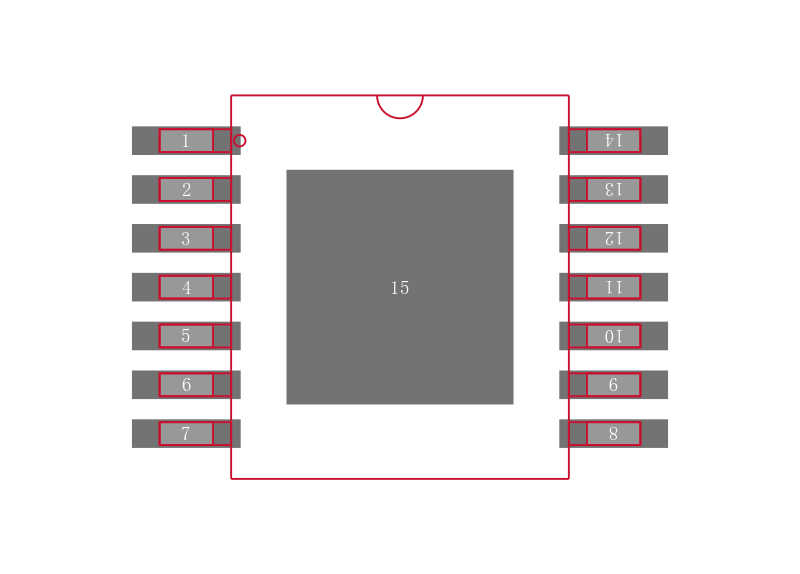

封装 TSSOP-14
封装 TSSOP-14
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LM3153MHE-3.3/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM3153MHX-3.3/NOPB 德州仪器 | 完全替代 | LM3153MHE-3.3/NOPB和LM3153MHX-3.3/NOPB的区别 |
LM3153MH-3.3/NOPB 德州仪器 | 类似代替 | LM3153MHE-3.3/NOPB和LM3153MH-3.3/NOPB的区别 |
