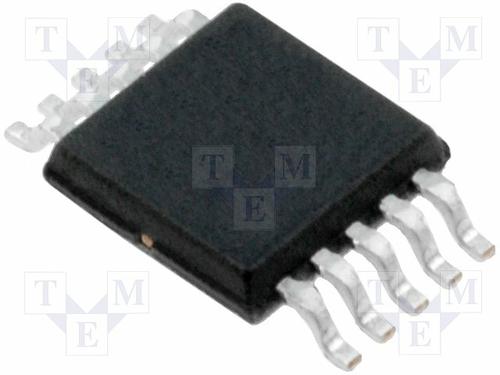

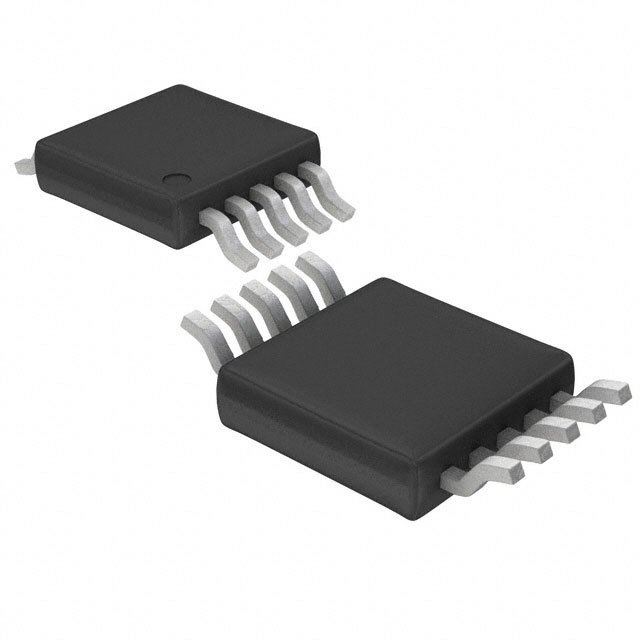

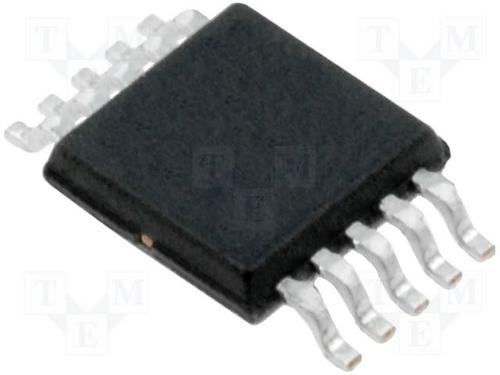

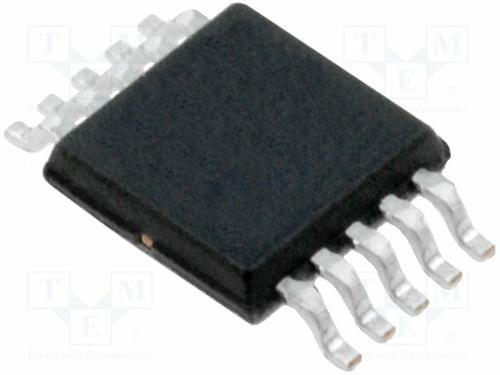

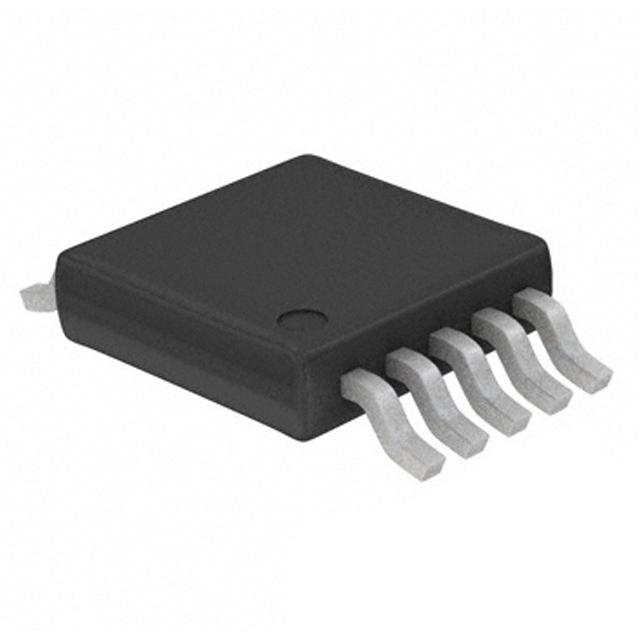

DC-DC converter; inverter; Uin:2.5÷36V; Uout:72V; 20A; MSOP10
Looking for a step up or step down in voltage within a DC circuit, look no further: this positive to negative DC voltage controller from will adjust the voltage properly. This DC voltage controller has single output. With an output that has a voltage of -72Max V, this is power management at its best. This DC voltage controller has an input voltage of 2.5 to 36 V. It has a switching frequency of 1000 kHz. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This DC voltage controller has an operating temperature range of -40 °C to 125 °C.
工作电压 2.5V ~ 36V
输出接口数 1
输出电压 72 V
输出电流 20 A
通道数 1
开关频率 50kHz ~ 1MHz
输入电压Max 36 V
输入电压Min 2.5 V
最大占空比 0.92
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 2.5.36 V
安装方式 Surface Mount
引脚数 10
封装 MSOP-10
封装 MSOP-10
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC3704IMS#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3704IMS 凌力尔特 | 完全替代 | LTC3704IMS#TRPBF和LTC3704IMS的区别 |
LTC3704IMS#PBF 凌力尔特 | 类似代替 | LTC3704IMS#TRPBF和LTC3704IMS#PBF的区别 |
LTC3704EMS#TRPBF 凌力尔特 | 类似代替 | LTC3704IMS#TRPBF和LTC3704EMS#TRPBF的区别 |
