4Mb512K x 8 串行闪存存储器
The LE25U40CQE is a SPI bus flash memory device with a 4M bit 512K x 8-bit configuration that adds a high performance Dual output and Dual I/O function. It uses a single 2.5 V power supply. While making the most of the features inherent to a serial flash memory device, the LE25U40CQE is housed in an 8-pin ultra-miniature package. All these features make this device ideally suited to storing program in applications such as portable information devices, which are required to have increasingly more compact dimensions. The LE25U40CQE also has a small sector erase capability which makes the device ideal for storing parameters or data that have fewer rewrite cycles and conventional EEPROMs cannot handle due to insufficient capacity.
Features | | Benefits
---|---|---
| | | | |
- .
- Read/write operations enabled by single 2.5 V power supply :
2.3 to 3.6 V supply voltage range
| |
- .
- 2.5 V single power supply
- .
- Operating frequency : 40 MHz
| |
- .
- High data transfer rate
- .
- Temperature range : -40 to 85°C
| |
- .
- Fast erase and programming time
- .
- Serial interface : SPI mode 0, mode 3 supported / Dual Output, Dual I/O supported
| |
- .
- High reliability
- .
- Sector size : 4K bytes/small sector, 64K bytes/sector
| |
- .
- Small sector erase, sector erase, chip erase functions
| |
- .
- Page program function 256 bytes / page
| |
- .
- Block protect function
| |
- .
- Highly reliable read/write
Number of rewrite times : 100,000 times
Small sector erase time : 40 ms typ, 150 ms max
Sector erase time : 80 ms typ, 250 ms max
Chip erase time : 250 ms typ, 2.0 s max
Page program time : 4.0 ms/256 bytes typ, 5.0 ms/256 bytes max
| |
- .
- Status functions : Ready/busy information, protect information
| |
- .
- Data retention period : 20 years
| |
- .

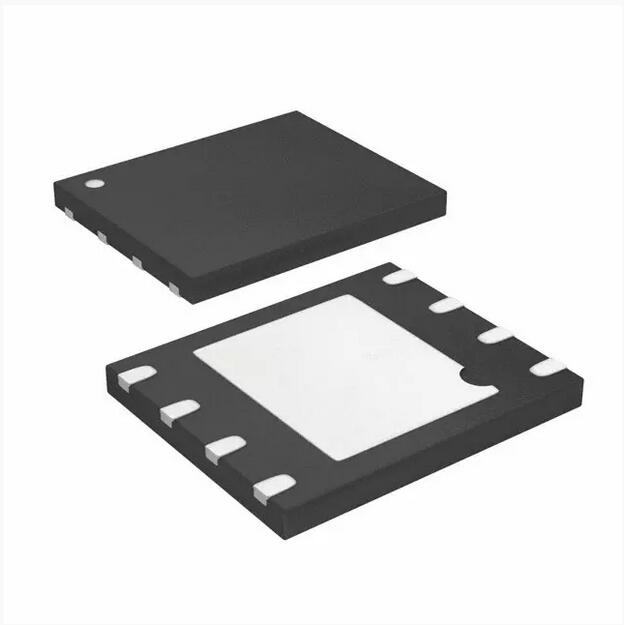

- Package : VSON8T6.0 x 5.0
| |
