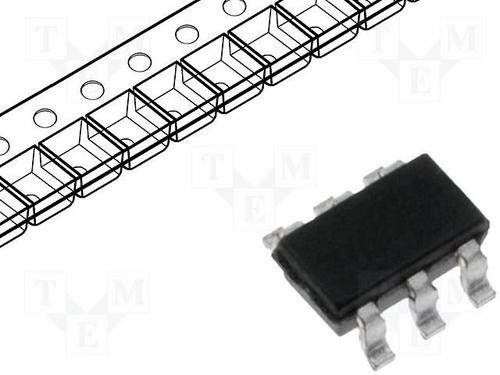

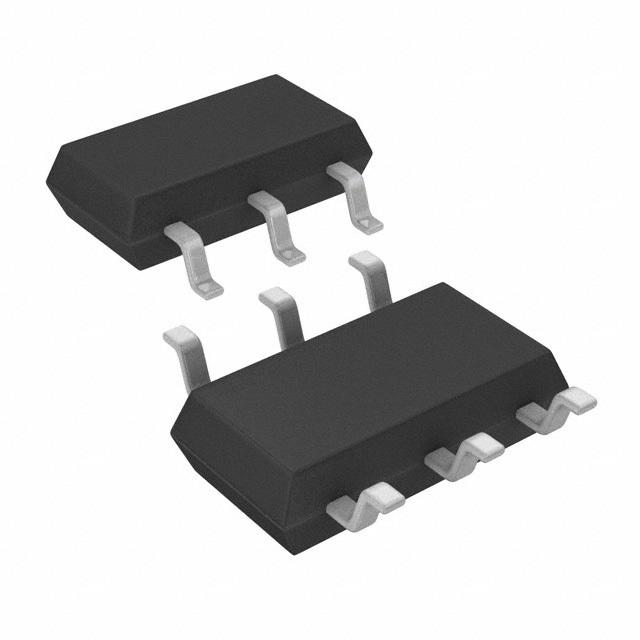

DC-DC Cntrlr Single-OUT Step Down 650kHz 6Pin TSOT-23 T/R
The step down DC voltage controller from is a highly-efficient tool that can give you the ability to change the voltage within your circuit. This DC voltage controller has single output. Its output produces a current of 5 A. With an output that has a voltage of 0.8 to 9.8 V, this is power management at its best. This DC voltage controller has an input voltage of 2.4 to 9.8 V. You can operate this at a switching frequency of 650 kHz. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 85 °C.
输出接口数 1
输出电压 0.8V ~ 9.8V
输出电流 5 A
开关频率 550 kHz
输入电压Max 9.8 V
输入电压Min 2.4 V
最大占空比 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.4V ~ 9.8V
输入电压 2.4V ~ 9.8V
安装方式 Surface Mount
引脚数 6
封装 TSOT-23-6
长度 2.9 mm
宽度 1.625 mm
封装 TSOT-23-6
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC3801BES6#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
