LINEAR TECHNOLOGY LTC2950ITS8-1#TRMPBF 芯片, 按钮控制器, TSOT23-8
The is a micropower pushbutton ON/OFF Controller with wide input voltage range. The part contains a pushbutton input with independently programmable ON and OFF debounce times that control the toggling of an open drain enable output. The part also contains a simple microprocessor interface to allow for proper system housekeeping prior to power down. Under system fault conditions, an internal KILL timer ensures proper power down. The LTC2950 operates over a wide 2.7 to 26.4V input voltage range to accommodate a wide variety of input power supplies. Very low quiescent current 6µA typical makes the LTC2950 ideally suited for battery powered applications. Two versions of the part are available to accommodate either positive or negative enable polarities.
ESD sensitive device, take proper precaution while handling the device.
输出接口数 1
输入电压DC 2.70V ~ 26.4V
输出电流 4 A
供电电流 6 µA

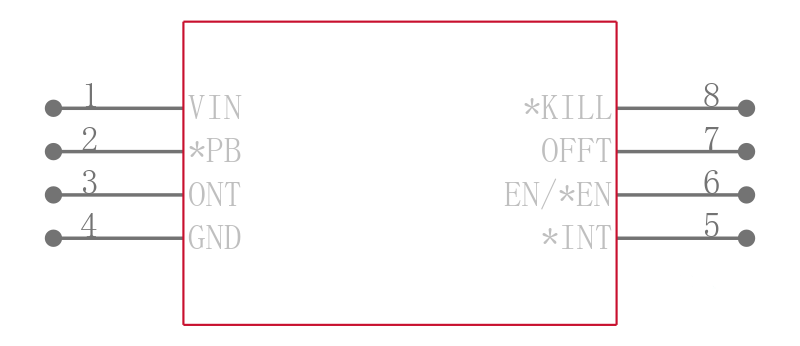

针脚数 8
输入电压Max 26.4 V
输入电压Min 2.7 V
复位电压Min 0.6 V
复位电压Max 1 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 26.4V
电源电压Max 26.4 V
电源电压Min 2.7 V
输入电压 80 V
安装方式 Surface Mount
引脚数 8

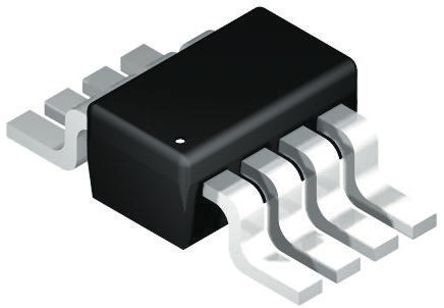

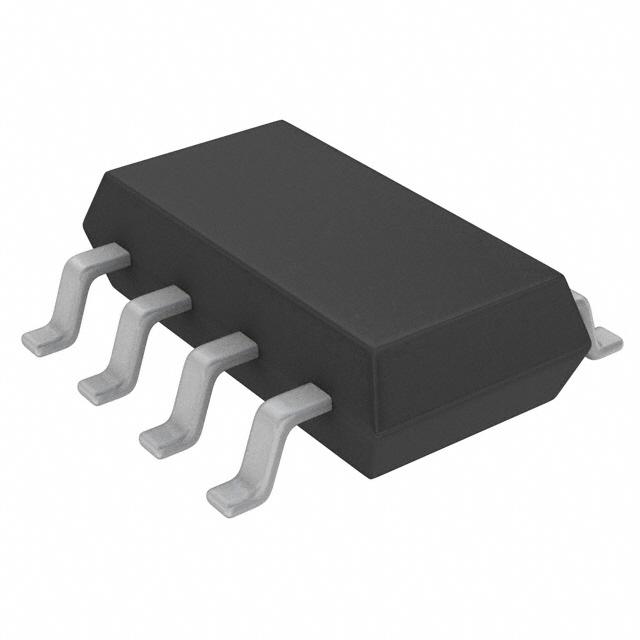

封装 TSOT-23-8
长度 2.9 mm
宽度 1.75 mm
高度 0.9 mm
封装 TSOT-23-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Sensing & Instrumentation, 便携式器材, 计算机和计算机周边, 传感与仪器, Computers & Computer Peripherals, 通信与网络, Portable Devices, Communications & Networking, 按钮,开/关控制器
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC2950ITS8-1#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC2950ITS8-1#TRPBF 凌力尔特 | 完全替代 | LTC2950ITS8-1#TRMPBF和LTC2950ITS8-1#TRPBF的区别 |
LTC2950CTS8-1#TRPBF 凌力尔特 | 类似代替 | LTC2950ITS8-1#TRMPBF和LTC2950CTS8-1#TRPBF的区别 |
