具有使能功能的 1.5A、7V、可调节超低压降稳压器 5-DDPAK/TO-263 -40 to 125
Never worry about components seeing unstable voltages again by implementing this LDO linear regulator manufactured by Texas Instruments. Its typical dropout voltage at current is 0.024@150mA|0.24@1.5A V. This voltage regulation device"s single output can produce a current up to 1.5 A. Use this part at voltages between 2.5 V and 7 V. With an adjustable output, this is power management at its best. At a load regulation of 0.06%Typ and line regulation of 0.02%Typ your circuit is capable of maintaining a constant voltage level at your output. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its polarity is positive. The maximum dropout voltage is 0.035@150mA|0.31@1.5A V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 1
输出电流 1.5 A
静态电流 4.00 mA
输出电容类型 Ceramic
跌落电压 240 mV
调节输出数 1
输入电压Max 7 V
输入电压Min 2.5 V
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min 40 ℃
输入电压 2.5V ~ 7V
安装方式 Surface Mount
引脚数 6

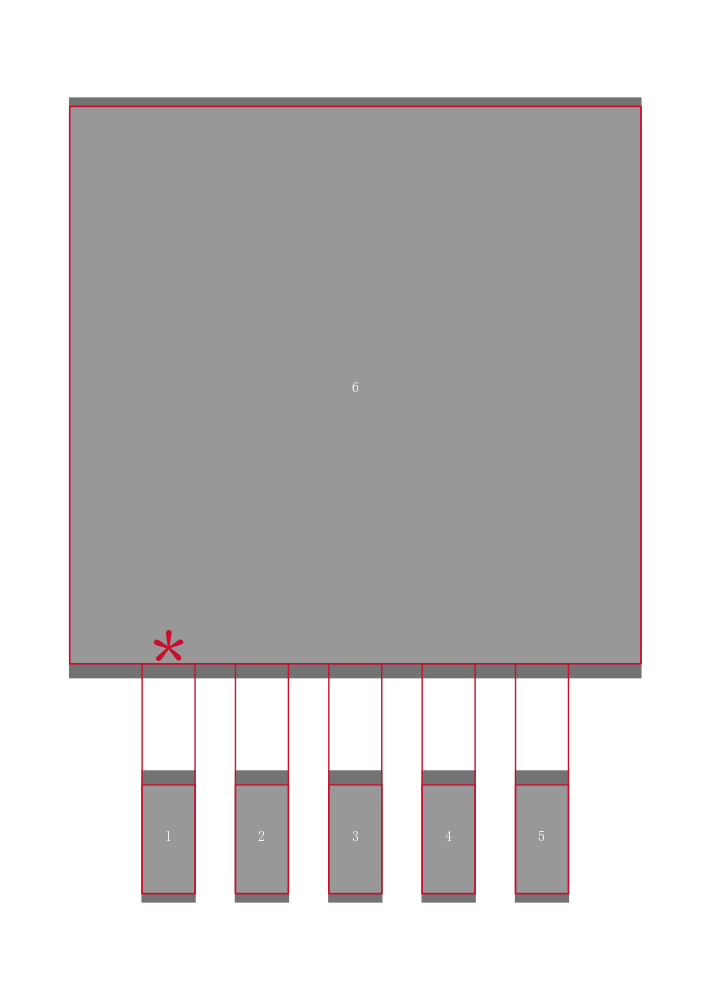

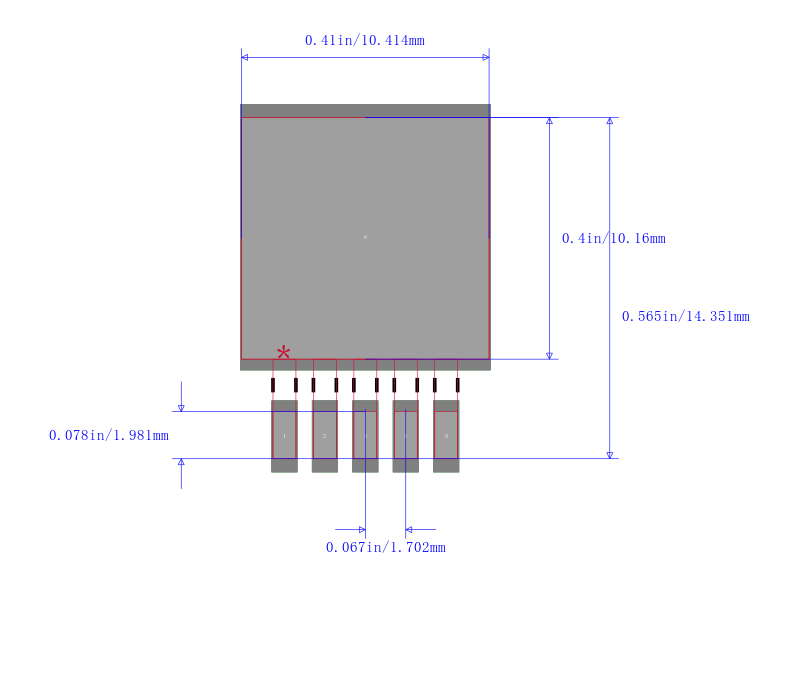

封装 TO-263-6
高度 4.83 mm
封装 TO-263-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP3855ESX-ADJ/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP3855ES-ADJ/NOPB 德州仪器 | 类似代替 | LP3855ESX-ADJ/NOPB和LP3855ES-ADJ/NOPB的区别 |
LP3855ES-ADJ 德州仪器 | 类似代替 | LP3855ESX-ADJ/NOPB和LP3855ES-ADJ的区别 |
LP3855ESX-ADJ 德州仪器 | 类似代替 | LP3855ESX-ADJ/NOPB和LP3855ESX-ADJ的区别 |
