LM3151 / LM3152 / LM3153 SIMPLE SWITCHER®控制器,高输入电压同步降压型 LM3151/LM3152/LM3153 SIMPLE SWITCHER® CONTROLLER, High Input Voltage Synchronous Step-Down
If you need to change voltage levels in your DC circuit design use the synchronous step down DC voltage controller from Texas Instruments. Its output produces a current of 12Max A. This DC voltage controller has single output. With an output that has a voltage of 3.3 V, this is power management at its best. This DC voltage controller has an input voltage of 8 to 18 V. Its switching regulator has a frequency of 750 kHz. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This DC voltage controller has an operating temperature range of -40 °C to 125 °C.
输出接口数 1
输出电压 3.3 V
输出电流 12 A
静态电流 3.60 mA
调节输出数 1
开关频率 750 kHz
拓扑结构 Buck
占空比 72 %
输入电压Max 18 V
输入电压Min 8 V
输出电流Max 12 A
最大占空比 72 %
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 8V ~ 18V
输入电压 8V ~ 18V
安装方式 Surface Mount
引脚数 14

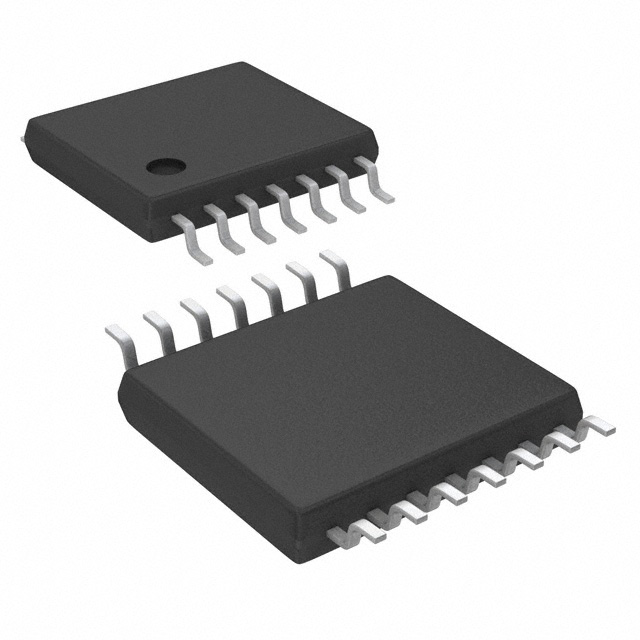

封装 TSSOP-14
封装 TSSOP-14
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM3153MH-3.3/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM3153MHX-3.3/NOPB 德州仪器 | 完全替代 | LM3153MH-3.3/NOPB和LM3153MHX-3.3/NOPB的区别 |
LM3153MHE-3.3/NOPB 德州仪器 | 类似代替 | LM3153MH-3.3/NOPB和LM3153MHE-3.3/NOPB的区别 |
