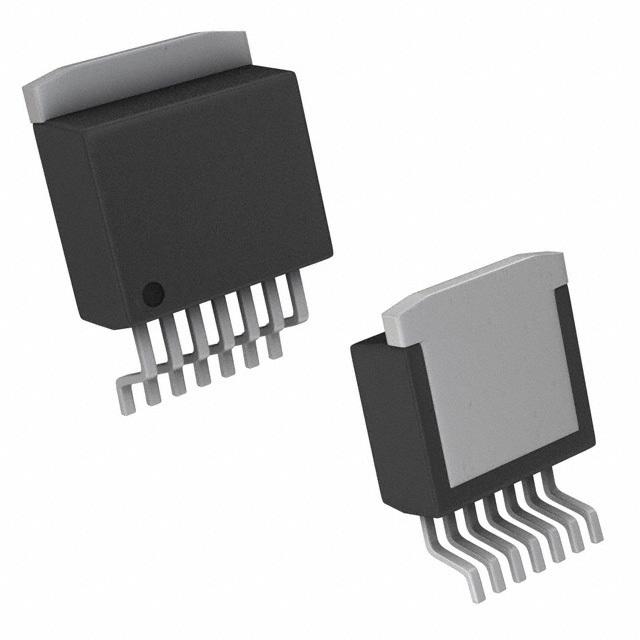

具有同步的 SIMPLE SWITCHER 高效 3A 降压电压稳压器 7-DDPAK/TO-263 -40 to 125
Adjust the voltage level of your devices with this step down DC to DC converter from Texas Instruments. This converter"s single output can produce a current up to 3 A. It only needs a voltage of at least 8 V while not exceeding 40 V to effectively power your circuit. With a fixed output that has a voltage of 5 V, this is power management at its best. This converter is 88typ % efficient. This part offers a switching frequency of 260Typ kHz in order to work properly. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This converter has an operating temperature range of -40 °C to 125 °C.
输出接口数 1
输出电压 5 V
输出电流 3 A
静态电流 4.20 mA
调节输出数 1
开关频率 260 kHz
拓扑结构 Buck
输入电压Max 40 V
输入电压Min 8 V
输出电压Min 5 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 8 V
输入电压 8V ~ 40V
安装方式 Surface Mount
引脚数 8
封装 TO-263-7
封装 TO-263-7
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LM2670SX-5.0/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM2670S-5.0/NOPB 德州仪器 | 完全替代 | LM2670SX-5.0/NOPB和LM2670S-5.0/NOPB的区别 |
LM2676S-5.0/NOPB 德州仪器 | 类似代替 | LM2670SX-5.0/NOPB和LM2676S-5.0/NOPB的区别 |
LM2676SX-5.0/NOPB 德州仪器 | 类似代替 | LM2670SX-5.0/NOPB和LM2676SX-5.0/NOPB的区别 |
