LINEAR TECHNOLOGY LT1763IDE-1.5#PBF 固定电压稳压器, LDO, 1.8V至20V, 300mV压差, 1.5V输出, 500mA输出, DFN-12
Never worry about components not turning off and on due to lack of voltage with this LDO linear regulator from . Its typical dropout voltage at current is 0.13@10mA|0.17@50mA|0.2@100mA|0.3@500mA V. This voltage regulation device"s single output can produce a current up to 0.5 A. Using the part will provide the power your application needs by requiring a voltage only of 1.8 V and not exceeding a voltage of 20 V. With a fixed output that has a voltage of 1.5 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 8mV and line regulation of 5mV. The maximum dropout voltage is 0.19@10mA|0.22@50mA|0.24@100mA|0.35@500mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
输出接口数 1
输出电压 1.5 V
输出电流 500 mA
针脚数 12
跌落电压 300 mV
输入电压Max 20 V
输入电压Min 1.8 V
输出电压Min 1.5 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 12

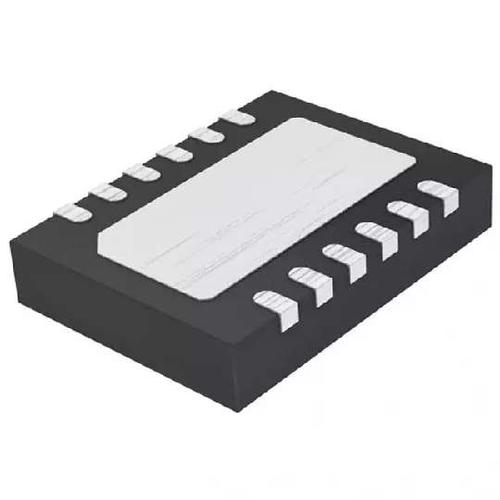

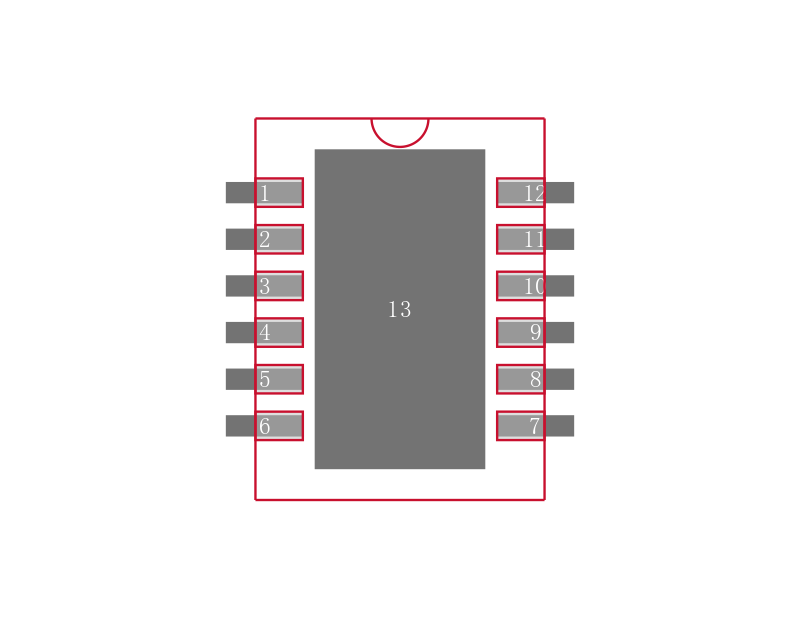

封装 DFN-12
封装 DFN-12
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1763IDE-1.5#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1763IDE-1.5#TRPBF 凌力尔特 | 完全替代 | LT1763IDE-1.5#PBF和LT1763IDE-1.5#TRPBF的区别 |
LT1763IDE-1.5 凌力尔特 | 类似代替 | LT1763IDE-1.5#PBF和LT1763IDE-1.5的区别 |
