LT1965IDD-1.5#PBF

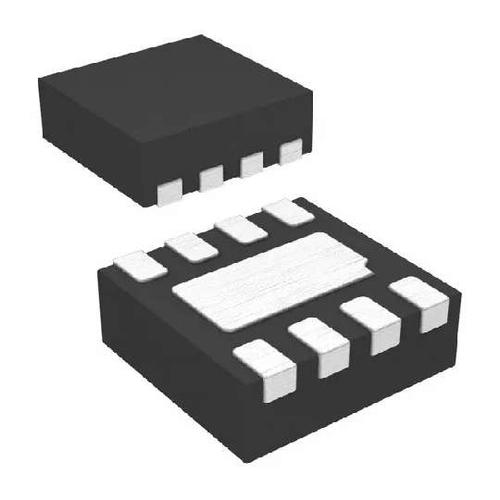

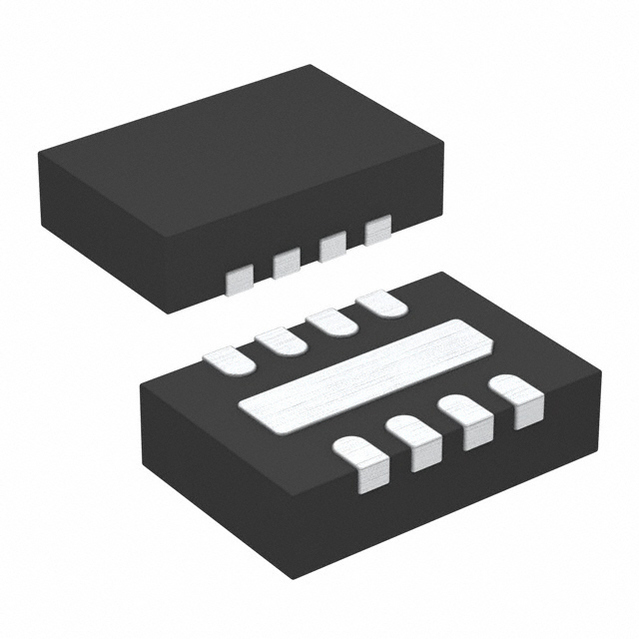

LDO Regulator Pos 1.5V 1.1A Automotive 8Pin DFN EP

This LDO linear regulator from is used to manipulate the voltage level of your circuit. Its typical dropout voltage at current is 0.055@1mA|0.12@100mA|0.21@500mA|0.31@1100mA V. This voltage regulation device"s single output can produce a current up to 1.1 A. It only needs a voltage of at least 1.8 V while not exceeding 20 V to effectively power your circuit. With a fixed output that has a voltage of 1.5 V, this is power management at its best. At a load regulation of 10mV and line regulation of 9mV a constant current can be produced at the output of your circuit. The maximum dropout voltage is 0.08@1mA|0.175@100mA|0.25@500mA|0.36@1100mA V. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
