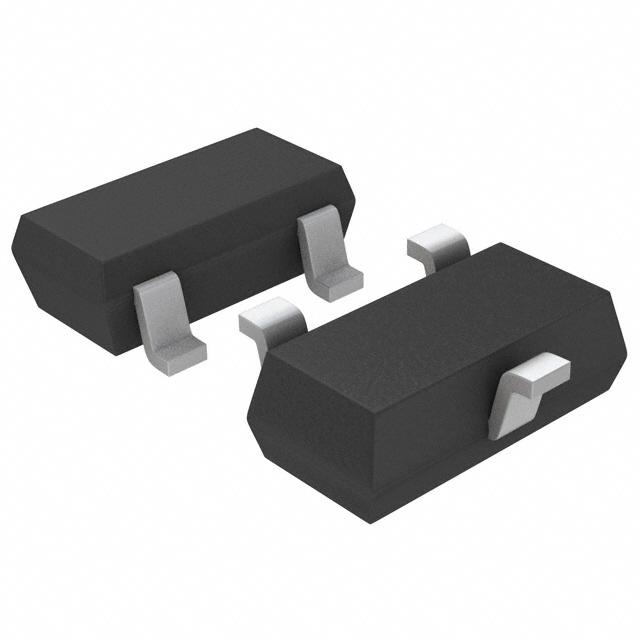

V-Ref Precision 5V 40mA 3Pin SOT-23 T/R
Even in the event of large power supply variations, this voltage reference power management device from can produce and maintain a precise DC voltage. It has an initial accuracy of 0.4%. With an output that has a voltage of 5 V, this is power management at its best. Supply your circuit with sufficient power by implementing this, which does not exceed 30 V. A load regulation of 3000ppm/mA and line regulation of 800ppm/V is necessary for providing a constant voltage level at your output. This voltage reference circuit supports series topology. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It runs with a maximum temperature coefficient of 20ppm/°C. This voltage reference circuit has a minimum operating temperature of 0 °C and a maximum of 70 °C.
容差 ±0.4 %
输入电压DC 20.0V max
输出电压 5 V
输出电流 40 mA
供电电流 240 µA
通道数 1
静态电流 200 µA
输入电压Max 30 V
输出电压Min 5 V
工作温度Max 70 ℃
工作温度Min 0 ℃
精度 ±0.4 %
输入电压 5.9V ~ 20V
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
封装 SOT-23-3
工作温度 0℃ ~ 70℃ TA
温度系数 ±20 ppm/℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1460JCS3-5#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1460JCS3-5#TRPBF 凌力尔特 | 完全替代 | LT1460JCS3-5#TRMPBF和LT1460JCS3-5#TRPBF的区别 |
LT1460JCS3-5#TR 凌力尔特 | 类似代替 | LT1460JCS3-5#TRMPBF和LT1460JCS3-5#TR的区别 |
