Step-Down DC/DC Converters Integrated Switch over 35V Input Max., Texas Instruments### 直流/直流开关调节器转换器(集成开关),Texas InstrumentsTexas Instruments 的此系列高度集成的高效开关稳压器包括步升(升压)、步降(降压)、步升/降(增压/降压)和反相类型,为每个直流稳压器应用提供高效的解决方案。
Step-Down DC/DC Converters Integrated Switch over 35V Input Max., Texas Instruments
### 直流/直流开关调节器转换器(集成开关),Texas Instruments
Texas Instruments 的此系列高度集成的高效开关稳压器包括步升(升压)、步降(降压)、步升/降(增压/降压)和反相类型,为每个直流稳压器应用提供高效的解决方案。
立创商城:
降压型 Vin=4.5V~36V Vout=800mV~32V 3A
德州仪器TI:
4.5-36V, 3A Current Mode Synchronous Buck Regulator with Frequency Synchronization
得捷:
IC REG BUCK ADJ 3A 20HTSSOP
欧时:

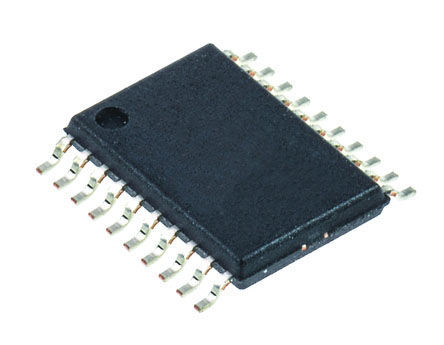

Texas Instruments LM20333MHE/NOPB 降压 开关稳压器, 4.5 → 36 V输入, 3A最大输出
e络盟:
TEXAS INSTRUMENTS LM20333MHE/NOPB 直流-直流开关降压逐步递减稳压器, 可调, 4.5V-36V输入, 800mV-32V输出, 3A输出, TSSOP-20
艾睿:
Adjust the voltage level of your devices with this step down LM20333MHE/NOPB DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 3 A. By only needing an input voltage of 4.5 V with a maximum of 36 V, this is the best way to control the power in your circuit. With an adjustable output that has a voltage of 0.8 to 32 V, this is power management at its best. This converter is 94 % efficient. It has a switching frequency of 200Typ kHz. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
安富利:
Conv DC-DC Single Step Down 4.5V to 36V 20-Pin TSSOP EP T/R
Verical:
Conv DC-DC 4.5V to 36V Synchronous Step Down Single-Out 0.8V to 32V 3A 20-Pin HTSSOP EP T/R
Newark:
# TEXAS INSTRUMENTS LM20333MHE/NOPB DC-DC Switching Buck Step Down Regulator, Adjustable, 4.5V-36Vin, 800mV-32Vout, 3Aout, TSSOP-20
DeviceMart:
IC REG BUCK SYNC ADJ 3A 20TSSOP
频率 200 kHz
输出接口数 1
输出电压 0.8V ~ 32V
输出电流 3 A
针脚数 20
静态电流 2.30 mA
调节输出数 1
开关频率 200 kHz
拓扑结构 Buck
输入电压Max 36 V
输入电压Min 4.5 V
输出电压Max 32 V
输出电压Min 800 mV
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 4.5V ~ 36V
安装方式 Surface Mount
引脚数 20

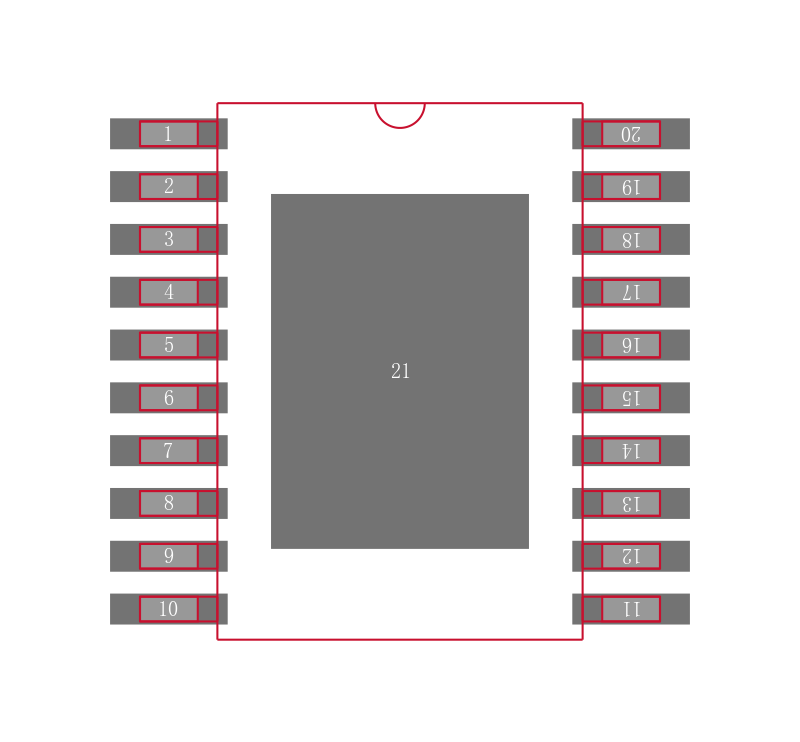

封装 TSSOP-20
长度 6.5 mm
宽度 4.4 mm
高度 0.9 mm
封装 TSSOP-20
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM20333MHE/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM20333MH/NOPB 德州仪器 | 完全替代 | LM20333MHE/NOPB和LM20333MH/NOPB的区别 |
LM20333MHX/NOPB 德州仪器 | 类似代替 | LM20333MHE/NOPB和LM20333MHX/NOPB的区别 |
