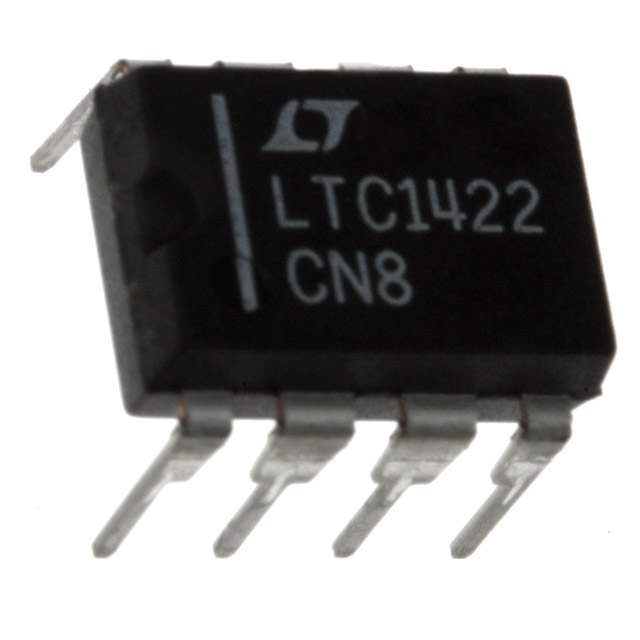

Hot Swap Controller 1CH 12V 8Pin PDIP N
DESCRIPTION
The LTC®1422 is an 8-pin Hot SwapTM controller that allows a board to be safely inserted and removed from a live backplane. Using an external N-channel pass transistor, the board supply voltage can be ramped up at a programmable rate. A high side switch driver controls the N-channel gate for supply voltages ranging from 2.7V to 12V.
FEATURES
■ Allows Safe Board Insertion and Removal from a Live Backplane
■ System Reset Output with Programmable Delay
■ Programmable Electronic Circuit Breaker
■ User-Programmable Supply Voltage Power-Up Rate
■ High Side Driver for an External N-Channel FET
■ Controls Supply Voltages from 2.7V to 12V■ Hot Board Insertion
■ Electronic Circuit Breaker
APPLICATIONS
■ Undervoltage Lockout
■ Soft Reset Input
■ Glitch Filter on RESET
